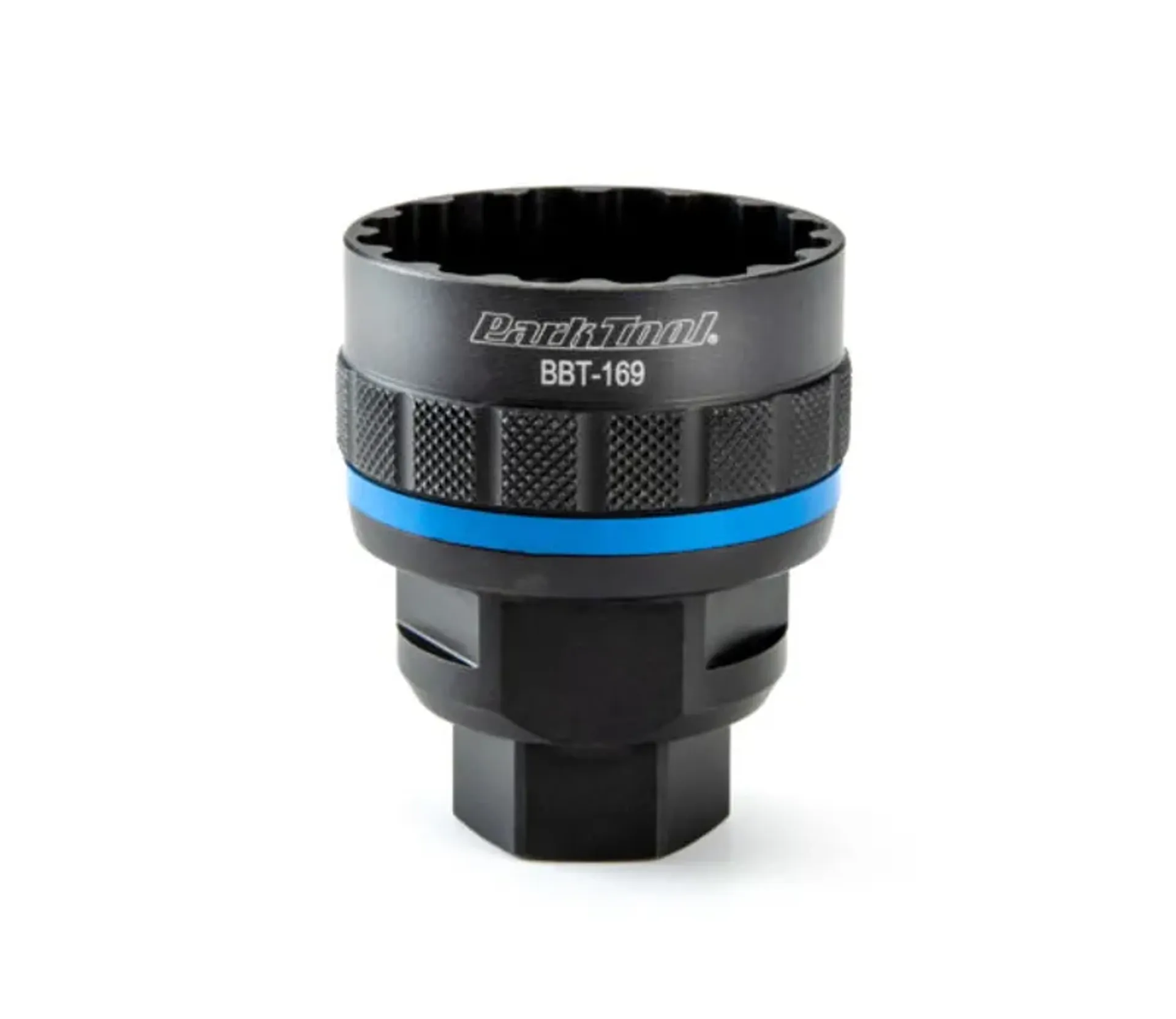

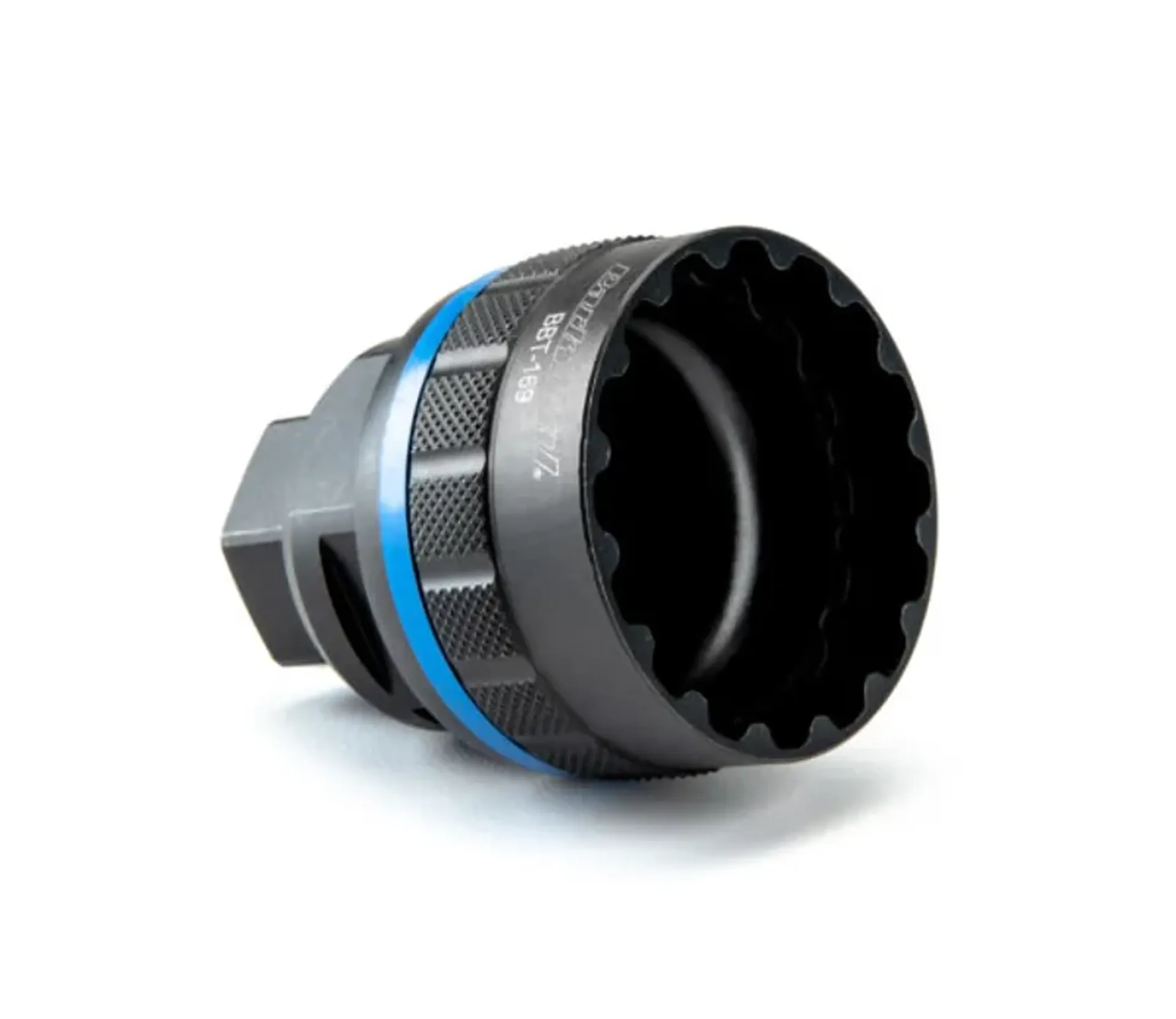

The Park Tool BBT-169 is a heavy-duty, precision-machined 4140 steel tool for the removal and installation of components with 16-notch tool fittings.
The Park Tool BBT-169 is a heavy-duty, precision-machined 4140 steel tool for the removal and installation of components with 16-notch tool fittings.
Park Tool

Park Tool BBT-169 16-Notch 44mm Bottom Bracket Tool in Black

£44.99
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

Park Tool BBT-169 16-Notch 44mm Bottom Bracket Tool in Black

Brand:Park Tool

Code:QKBBT169

The Park Tool BBT-169 is a heavy-duty, precision-machined 4140 steel tool for the removal and installation of components with 16-notch tool fittings.

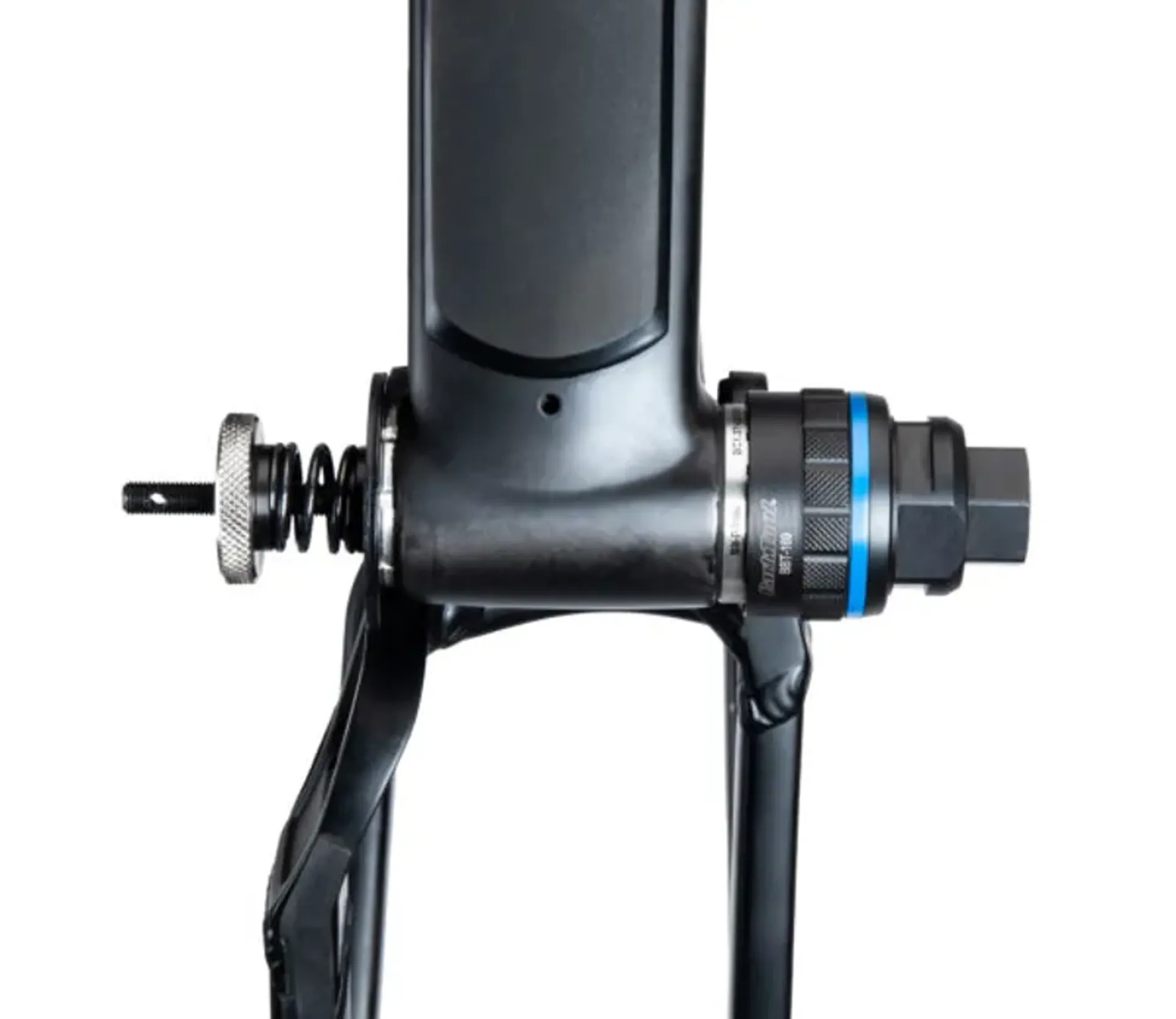

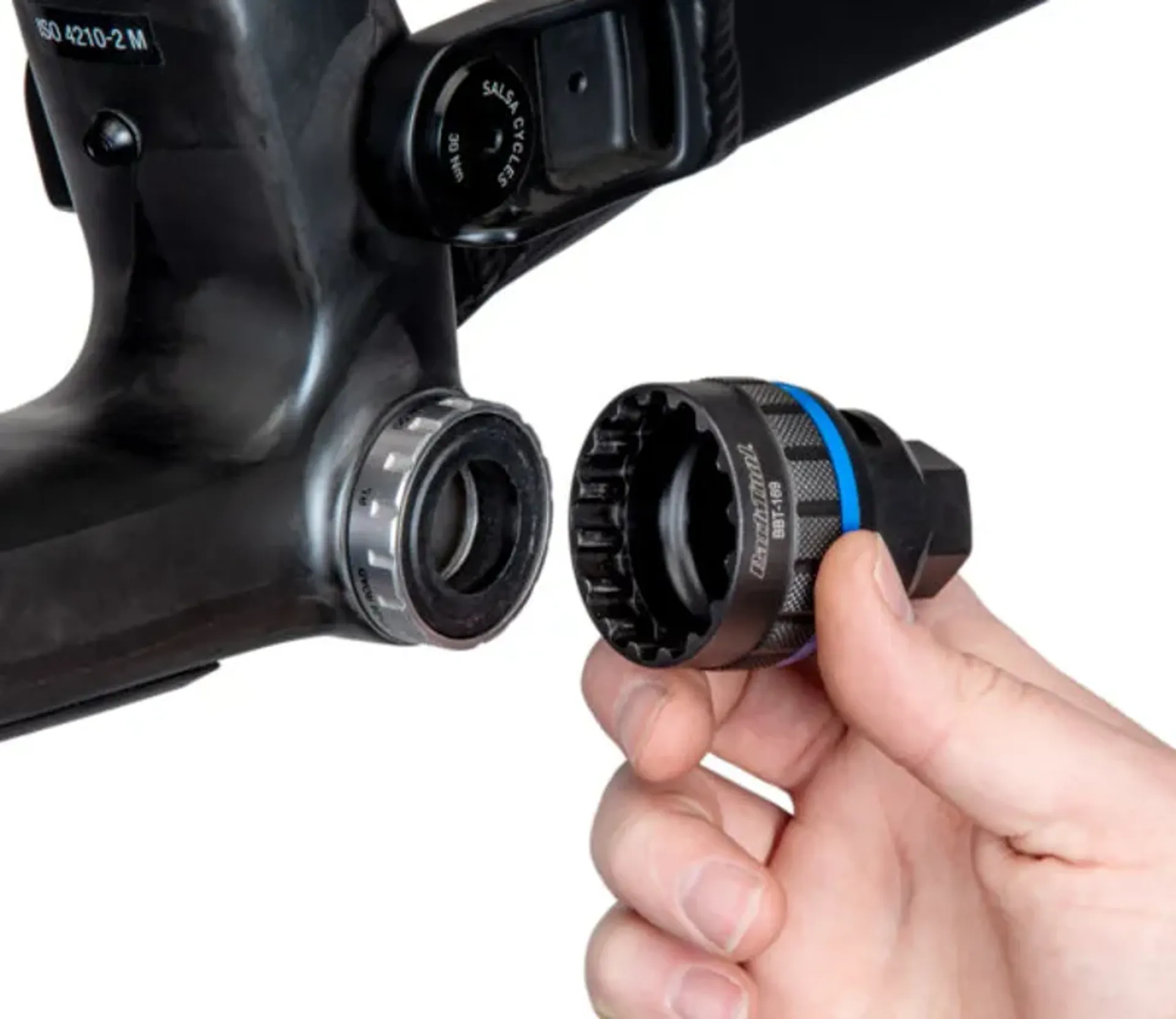

This tool is designed for use with bottom brackets, center lock disc brake rotor lockrings, and e-bike motor lockrings. It features an extra-deep body to accommodate extra-wide spindles and low-profile walls at the point of engagement for recessed lockrings. The tool offers three methods of engagement: a 0.95 cm (3/8") drive fitting, a 2.54 cm (1") hex fitting, and 36 mm wrench flats, allowing for the removal of seized components. Integrated threads allow for use with the Park Tool BBT-RS Bottom Bracket Tool Retaining System or GPS-1 Guide Pins for added stability.

Features:

  • Fits 16-notch tool fittings with a major diameter of 44–45 mm and a minor diameter of 42.7 mm.
  • Compatible with Shimano, Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-type, Surly, Wheels, Fulcrum, and others.

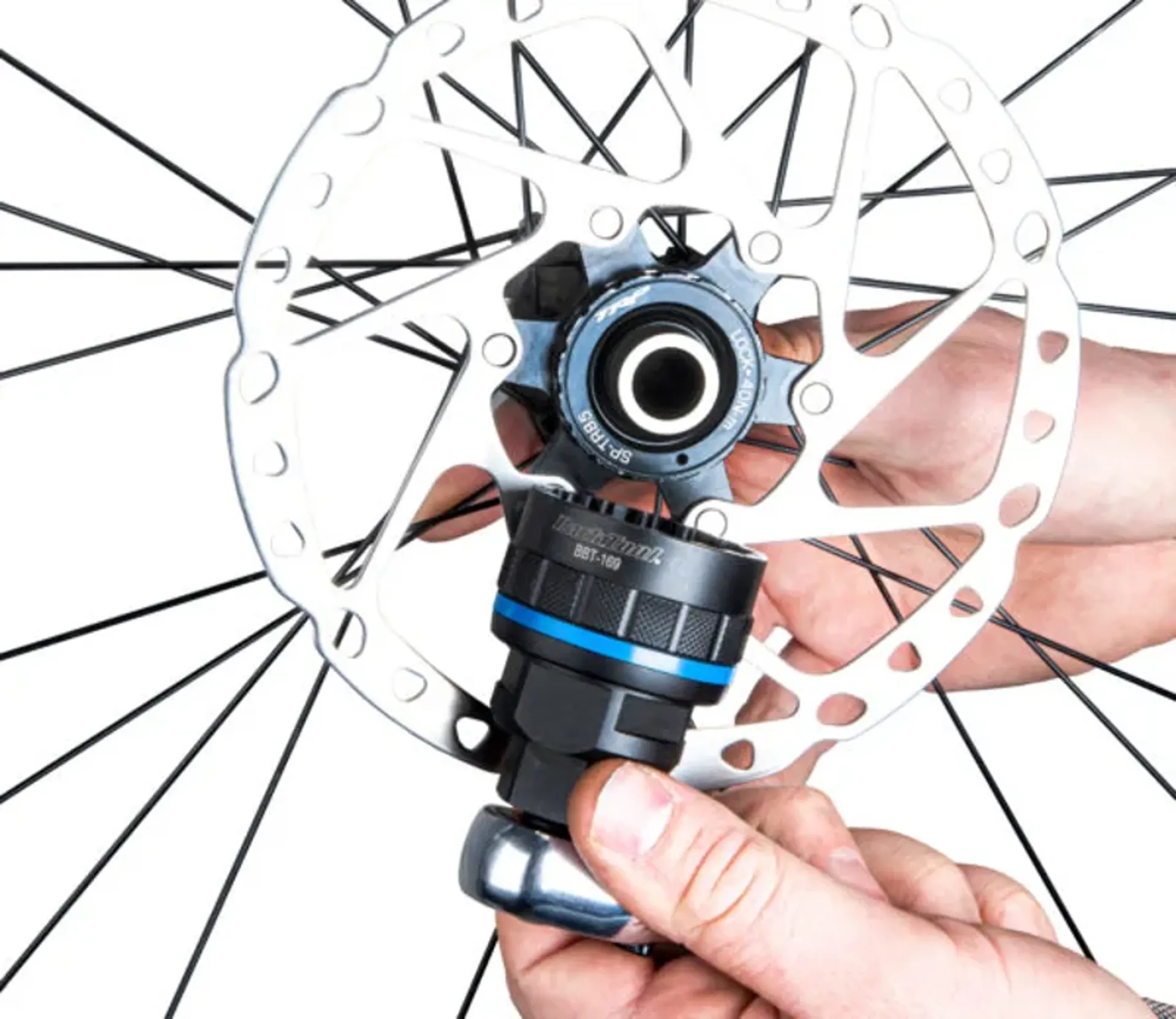

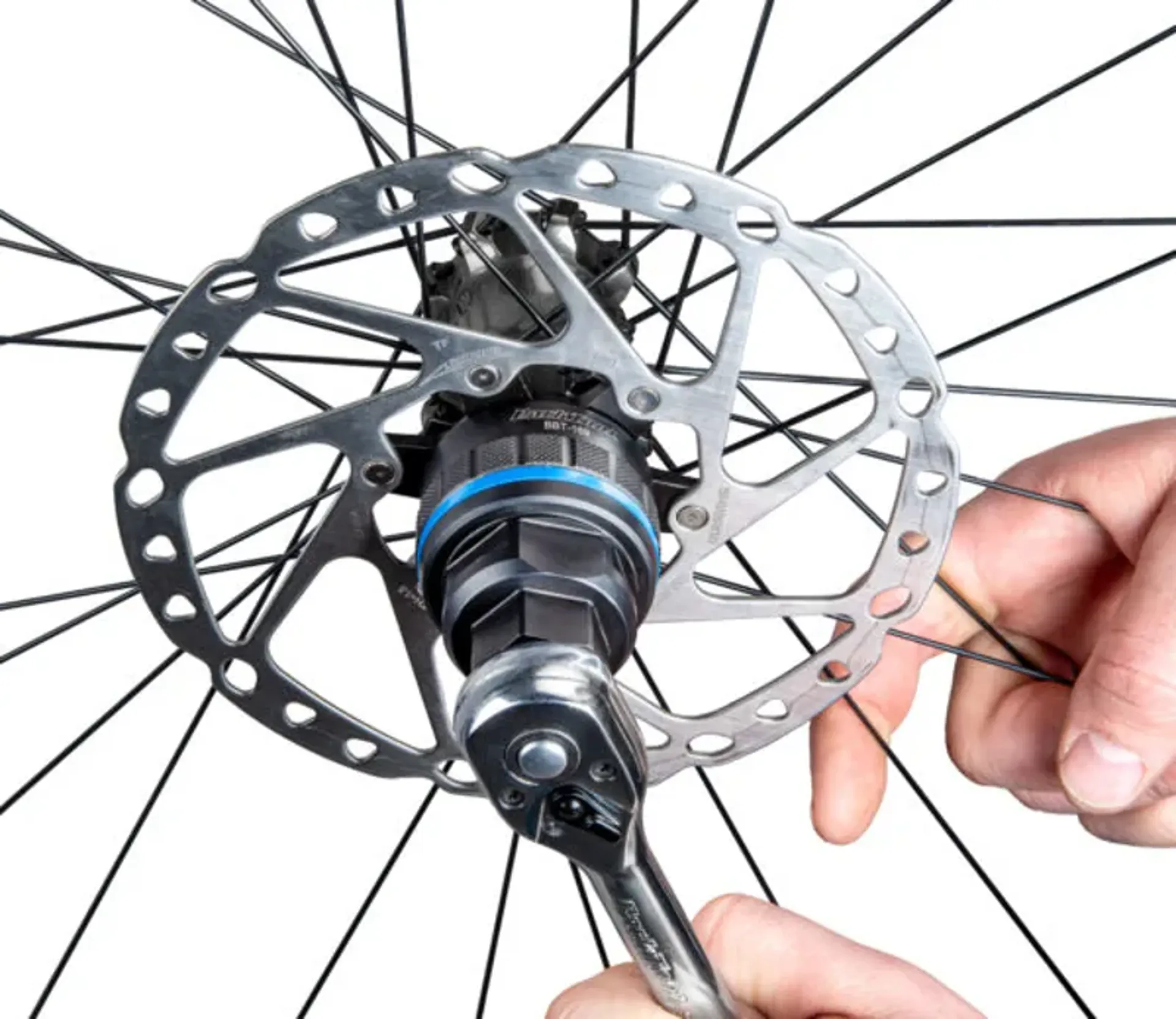

  • Fits center lock disc brake rotor lockrings and Bafang BBSH and BBS02 mid-drive motor lockrings.
  • 0.95 cm (3/8") drive fitting, 2.54 cm (1") and 36 mm wrench flats.
  • 5.0 cm (1.97") outer diameter at point of engagement.

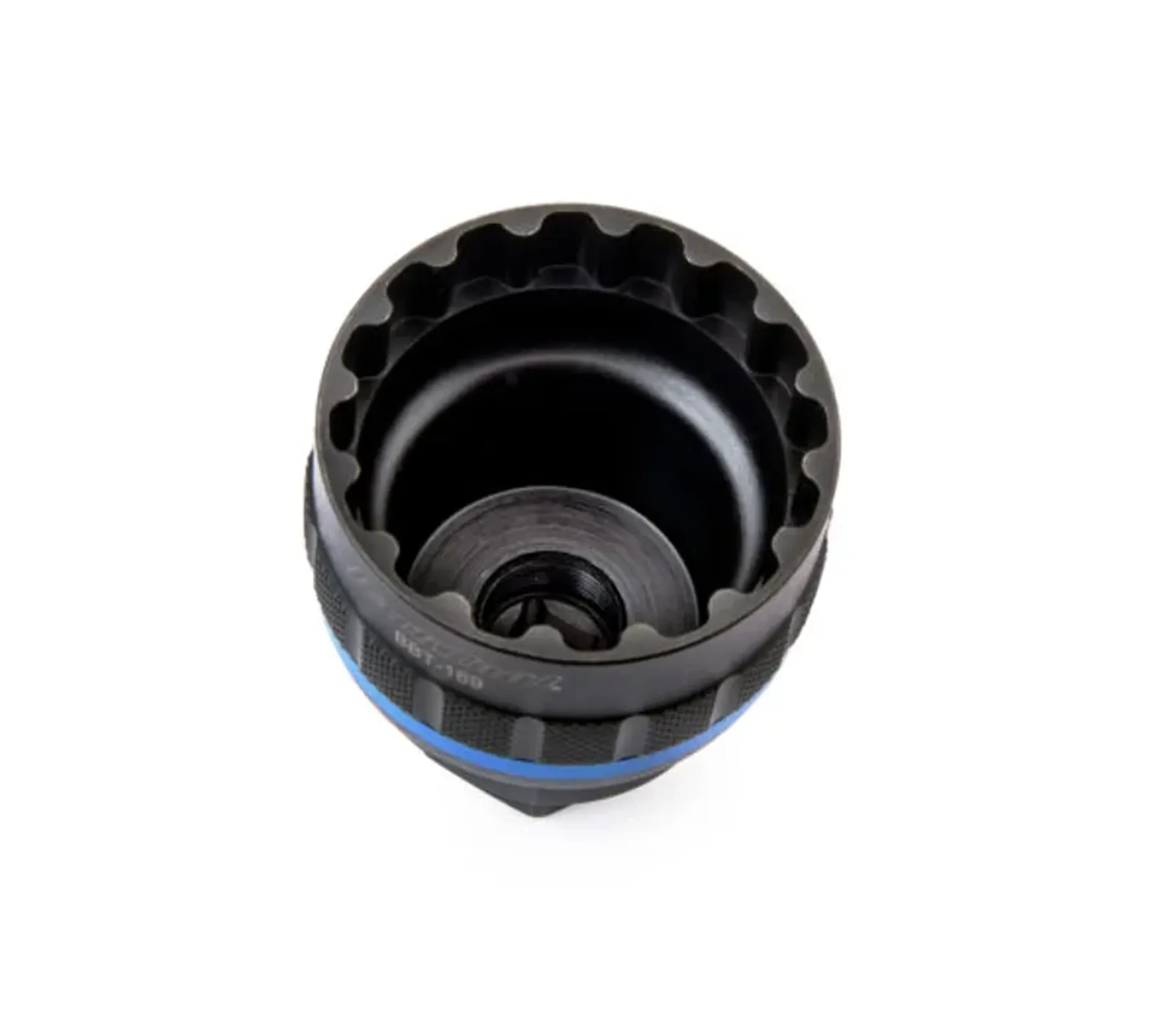

  • Internal clearance: 42 mm (1.654") depth x 3.04 cm (1.198") diameter.
  • Intended for extraction; not rated for use with impact drivers.
Technical Information
  • Material
    4140 steel
  • Tool fitting
    16-notch
  • Major diameter
    44–45 mm
  • Minor diameter
    42.7 mm
  • Drive fitting
    3/8"
  • Wrench flats
    1" and 36 mm
  • Outer diameter
    50.04 mm (1.97")
  • Internal clearance
    42 mm (1.654") depth x 30.44 mm (1.198") diameter
  • Brand
    Type
    Model
  • ACS®
    Threaded
    Crossfire™ External
  • Answer® BMX
    Threaded
    Ceramic
  • BBInfinite™
    Threaded
    BSA Threaded, Italian Threaded, T47 External
  • Bikone™
    Threaded
    BSA / Italian
  • Box® Components
    Threaded
    Extremum RacePrep™, Two™ 24mm
  • C-Bear®
    Threaded
    BSA/ITA 24mm, Campagnolo®, and GXP®
  • Campagnolo®
    Threaded
    Ekar Pro-Tech™ BSA and Italian threading, Ekar Pro-Tech™ T47 x 68, Power Torque™, Ultra-Torque®
  • CeramicSpeed®
    Threaded / Thread-Together
    BB30 Shimano® and GXP®, BSA Threaded Shimano® and GXP®, Campagnolo® Ultra-Torque® T47, BSA, and Italian, Italian Threaded Shimano® and GXP®, T47/68 Shimano®, GXP®, and Campagnolo® Ultra-Torque®
  • Chris King®
    Threaded
    ThreadFit™ 24
  • ELEVN Racing™
    Threaded
    Euro Bottom Brackets
  • Enduro®
    Threaded / Thread-Together
    BB30/30a TorqTite® GXP®, 24mm, and Campagnolo® Ultra-Torque®, BB86/92 TorqTite®, BBright™ TorqTite® 24mm, BSA and Italian Threaded 24mm, T47 External
  • e*thirteen®
    Threaded
    BSA 24mm
  • FSA®
    Threaded
    MegaExo®
  • Hambini™
    Threaded
    BSA
  • Hawk Racing™
    Threaded
    BSA, Italian Threaded
  • Hope™
    Threaded
    BSA 24 mm
  • IRD®
    Threaded
    ScramJet™
  • Kogel™
    Threaded
    BSA GXP® / 24mm, T47 Outboard 24mm and GXP®
  • Miche®
    Threaded
    Evo Max, Pista Attiva, T47, TC IC XL 24, TC IC XL 29
  • Phil Wood™
    Threaded
    BSA Outboard
  • Praxis Works®
    Threaded & Thread-Together
    M24, Shimano®
  • Profile Racing®
    Threaded
    Euro Outboard
  • Promax®
    Threaded
    Outboard
  • Prowheel®
    Threaded
    PW-BB68+, PW-BB73+, PW-BB100+, PW-BB120+
  • Race Face®
    Threaded
    BSA 24mm
  • Rotor®
    Threaded
    BSA GXP®, BSA Shimano®, T47 External 24mm
  • Samox®
    Threaded
    EB2401 and EB2402
  • Shimano®
    Threaded
    All Other Outboard
  • SRAM®
    Threaded
    GXP®
  • SunRace®
    Threaded
    BB-497
  • Suntour®
    Threaded
    BB-BKA008-C
  • Surly®
    Threaded
    O.D.
  • Token®
    Threaded / Thread-Together
    BB841T-41, BB841T-42, BB841T-42A, BB841T-46, BB841T-46A, BB4124C, BB4129QB, BB4130QB, T47R24, T47RGXP, TK877, TK878
  • TRiPEAK®
    Threaded
    All
  • Velo Orange®
    Threaded
    Threadless Repair
  • Wheels Mfg™
    Threaded / Thread-Together
    BB30 Outboard, BB30A, BSA Threaded GXP® and 24mm, PF30 Outboard GXP® and 24mm, T47 Outboard GXP® and 24mm
  • White Industries™
    Threaded
    BBE22T47, BBE24BSA, BBE24T47
