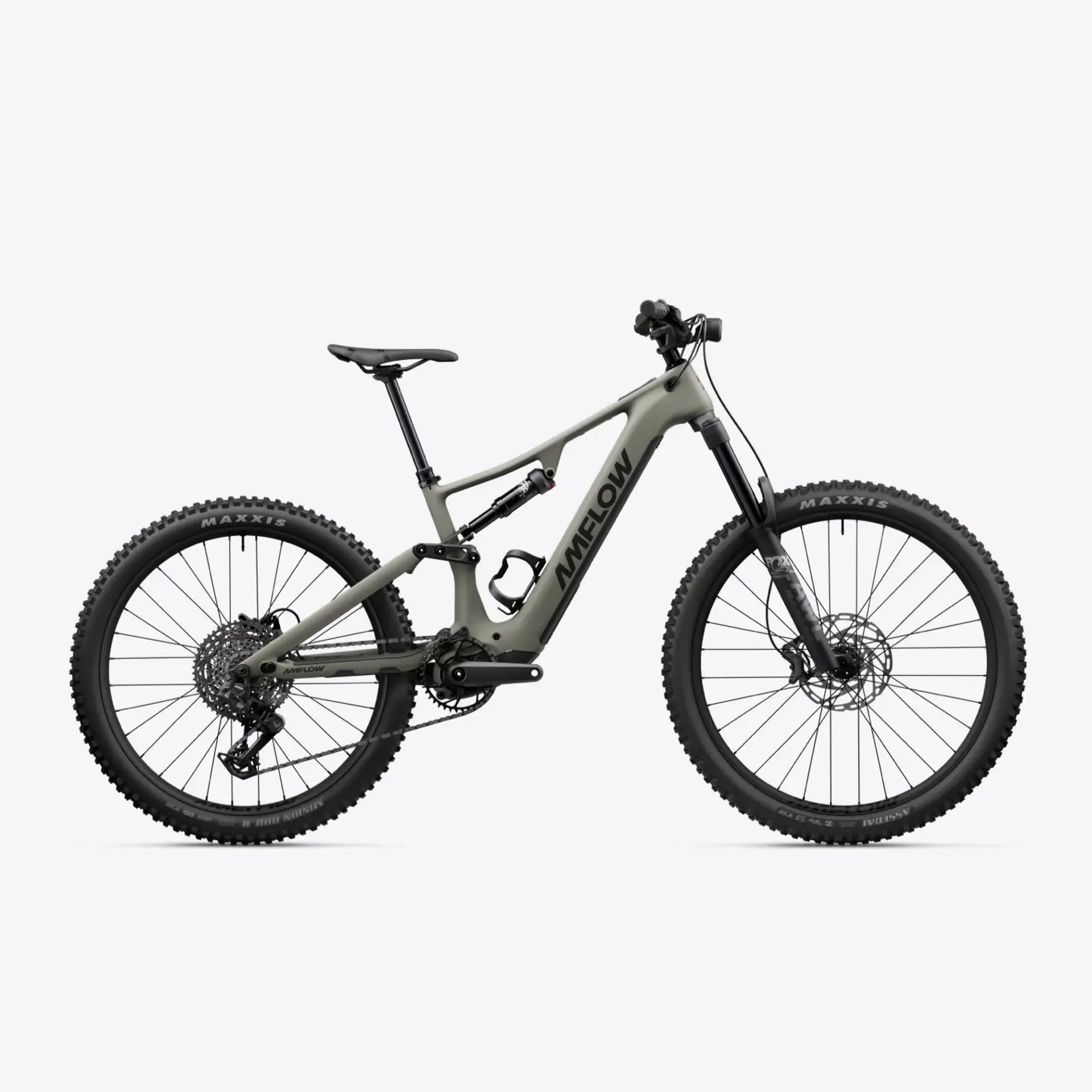

Amflow PR Carbon in Moss Green

Season:2027

Brand:Amflow

Code:AMFLOWPR

Amflow PR combines striking aesthetics with a full-carbon frame, delivering up to150N·m[1]of torque and1500W[1]of peak power on configurations equipped with the Avinox M2S Drive Unit. With a swappable battery for extended rides, it gives you the freedom to ride farther and push your limits in style.

Geometry Design

Flexible Adjustment, Effortless Control

Geometry, Tuned to the Terrain
Amflow PR features a cutting-edge progressive geometry. With precision fine-tuning available for the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations[2]. This allows for precise adaptation to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.

Ultra-Light Carbon Fiber Frame, Easy Handling
The Amflow PR frame weighs around 2.9kg[3], yet never compromises on strength or rigidity. It handles heavy demands with a light touch, making every ride through rough terrain more composed.

More Ride, Less Noise
Innovative compound planetary gears and helical gear design suppress the operating sound of the Avinox M2S Drive Unit to as low as 45dBA [4]. Mechanical noise is well controlled. On the trail, the sound of the wind and trail feedback become clearer, allowing you to focus on your rhythm and handling, fully immersing yourself in the joy of riding.

Natural Support, Peak Power
Power shouldn't be abrupt. The Avinox M2S Drive Unit utilizes multiple high-precision sensors and intelligent algorithms to adjust output in real-time, translating power into a natural, linear pedal feel. The Avinox Drive System also features a specialized Auto mode [9], which adapts assistance in real-time based on road conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode [10] to instantly get 150N·m [1] of torque and 1500W [1] high-power assistance

Avinox M2 Drive Unit

The drive unit is as light as 2.65kg[8], maintaining its lightweight advantage while achieving steady performance improvements. Compared to the previous generation, power density increased by 4.6%[11].

Offline Navigation [12], Made Smarter
The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronization and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.

Apple Find My Tracking [15]
Integrated into the Apple Find My ecosystem, leveraging Apple's vast network to help you track your bike's location and battery level anytime via the "Find My"app. It also features a one-tap buzzer function to locate your bike [13].

Smart Heart Rate Control

No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety

Smart Heart Rate Control

No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety

Your Ride, More Connected
Amflow PR seamlessly integrates cutting-edge smart technology into your daily ride, delivering effortless convenience on every journey.


1. The Avinox M2S Drive Unit has a rated power of 250W, with a peak output power of up to 1500W in Trail, Turbo, Auto and Boost modes and a maximum torque of 150N·m in Boost mode. Compared to the Avinox M1 (peak power 1000W, maximum torque 120N·m), power and torque are increased by approximately 45.9% and 21.6%, respectively. Actual output performance may vary depending on usage scenarios, riding modes, and system status.2. The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.3. Measured on Amflow PR Carbon (Size M), including front and rear triangles, links, pivot bearings, bolts, and washers.4. Data was measured for Avinox in a quiet, open indoor environment using a binaural microphone at an axial distance of 0.1m and a height of 1.5m.5. The 158km range was measured on a flat paved road with an 80kg rider on Amflow PR Carbon (800Wh). Testing was conducted in the Eco assistance mode at a cadence of 65rpm and a speed of 21km/h, with default assist settings. Actual range depends on factors like temperature and wind speed. Results may vary.6. The data is derived from laboratory comparison tests: charging the Avinox RS800 Battery (from 0% to 80% SOC) using the Avinox 508W Charger is approximately 3 times faster than using the Avinox 168W Charger.7. When used as an external battery, the Avinox RS600 Battery is only compatible, due to size constraints, with L, XL, and XXL frame sizes of Amflow PR Carbon and XL and XXL frame sizes of Amflow PR Carbon Pro. Sold separately. Additional configurations coming soon.8. The data is based on the Amflow PR Carbon Pro M-size complete bike (tubeless setup). Actual product weight may vary due to personalized configurations (e.g., lights, pedals), manufacturing batch differences, and external factors. Please refer to the actual product. Additionally, the weights of the Avinox M2S and M2 Drive Units exclude heatsinks.9. As of April 9, 2026, according to Amflow's research on multiple bike models on the market.10. Boost mode can be maintained for a maximum of 60 seconds, after which it will automatically switch back to the previously selec11. Data is derived from Avinox laboratory calculations, based on a comparison with the Avinox M1 Drive Unit under identical testing conditions.12. Amflow PR supports route file import in GPX, FIT, and TCX formats. Offline navigation is currently limited to a mapless mode, displaying only the route track.13. When the Avinox Drive System is offline and not being charged, it communicates with the Avinox Ride app every 30 minutes (approximately) to sync system status. As a result, bike location change alarms may have an up to 30-minute delay between the actual bike movement and the alert.14. With the Avinox Drive System online, this function can be achieved when the mobile phone and bike communicate via Bluetooth network. If the system is offline and the bike detects abnormal movement, this function can also be triggered when the phone and bike communicate via Bluetooth network. With a Bluetooth connection, in an environment free of interference and obstructions, the effective range of this function is approx. 10 meters (32 feet). However, performance may be affected by the mobile phone or other devices used. Actual experience may vary.15. Apple Find My is available exclusively on Amflow PR models, enabling location tracking without relying on a 4G network.16. Amflow PR and the Avinox Drive System are certified by TÜV SÜD and the chargers by TÜV Rheinland.17. All the above data was measured while charging the Avinox RS800 Battery in a well-ventilated indoor environment at a room temperature of 26°C.
Technical Information

Frame

Amflow PR Carbon Frame

Moss Green

40 adjustable geometry configurations *

Compatible with 27.5″ and 29″ rear wheels


* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.

E-Bike System

Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Removable Battery: 800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Charger: 4A/168W

Rear shock

FOX Float Rhythm (MY 2027)

custom tune, LSR adjustment, 210×55mm, air shock

Fork

FOX AWL HD Sport (MY 2027)

160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset

Drivetrain

Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur

Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox

Shift Levers: SRAM AXS Pod Controller

Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T

Chain: SRAM Eagle 70 Transmission Flattop Chain

Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom

Tektro Sensor Rotor (203mm, 2.3mm)

Wheels

Amflow XMA-30 Mullet Version

Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready

Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready

Spokes: SAPIM E-Light

Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt

Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG

Tires

Front: Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR

Rear: Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR

Handlebar

Amflow Enduro Alloy Handlebar

40mm Rise, 800mm Width, 35mm Diameter

5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grip 2 Lock-on Grips

Stem

Amflow Mountain Bike Split Stem

Length: 35mm

Clamping Diameter: 35mm

Saddle

Amflow Mountain Saddle

Dropper Post

Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)

M Frame: 190mm

L/XL Frame: 210mm

XXL Frame: 230mm

Accessories

Avinox Front Light

Amflow Bottle Cage

Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)

Removable Battery Keys × 2

5/10mm Dropper Post Travel Reducing Spacer

Quick Start Guide

Rear Light

Torque Wrench

Clear Frame Protection Film

Shock Pump

Sizing Information
Geometry
MLXLXXL
AReach452mm475mm500mm527mm
BStack Height626mm637mm649mm662mm
CStandover Height782.5mm788.9mm791.5mm799.1mm
DFront Center787.7mm816mm846.8mm879.9mm
EFork Length576mm576mm576mm576mm
FWheelbase1227.9mm1256.2mm1287mm1320.1mm
GChainstay Length440/452mm440/452mm440/452mm440/452mm
HBottom Bracket Drop10.4/24.5mm10.4/24.5mm10.4/24.5mm10.4/24.5mm
IBottom Bracket Height349.5mm349.5mm349.5mm349.5mm
JEffective Top Tube Length596.5mm623.5mm652.9mm684.6mm
KHead Tube Angle64.5°64.5°64.5°64.5°
LHead Tube Length111.4mm123.6mm136.9mm151.3mm
MActual Seat Tube Angle70°70°70°70°
NEffective Seat Tube Angle77°76.9°76.7°76.6°
OSeat Tube Height405mm425.3mm445mm464mm
