Gravel is about choices

Gravel is about choices

Mondraker

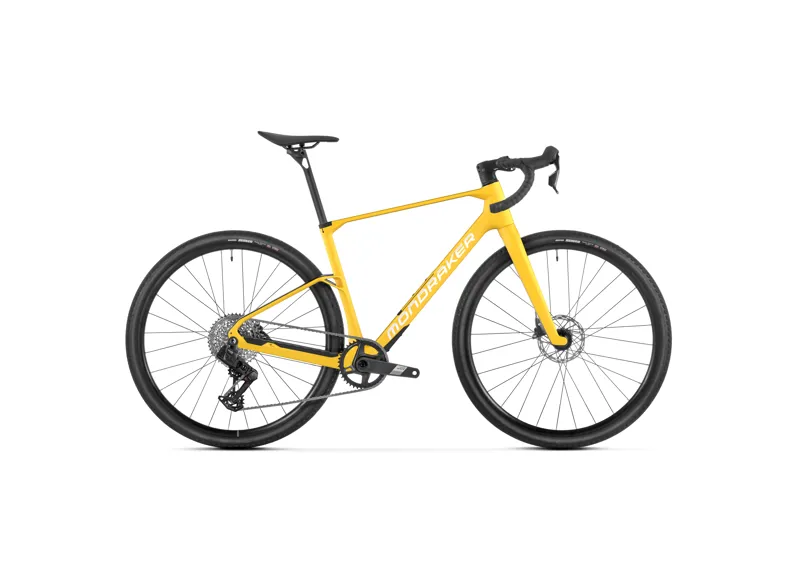

Mondraker Arid Carbon S AXS in Suncore Yellow

£3,399.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

Mondraker Arid Carbon S AXS in Suncore Yellow

Season:2026

Brand:Mondraker

Code:010.2710ARIDCARBSU

The full Arid Carbon range with its four builds: S, R, RR and RR SL complete with the spec updates, is now available in four striking new colours: Aura Blue, Ultraviolet, Mirage Silver, and Superblack. Four colourways which have been meticulously selected by our Blue Lab paint department to elevate the Arid Carbon’s aesthetics and exclusivity for the new season.

MORE THAN CARBON FIBRE WEAVE
Prototypes. Carbon fibre weave. Finite element analysis. 3D modelling, blah, blah, blah…
We don’t want to bore you with the details but we think you’ll be interested in this. Stealth Air Carbon is our elite-level carbon fibre construction process. The carbon fibre which makes up an ARID frame is designed, cut and assembled in such a manner that we’ve managed to create the most comfortable, the most vertically compliant fully rigid frame to ever come out of our workshops. And to top it all off, regardless of its gravel bike label, ARID meets and exceeds the same strict ISO standards as all of our full-on mountain bikes. You see, lateral stiffness and power transfer don’t have to be incompatible with small-bump compliance and comfort.

COMPLIANCE AND STIFFNESS COMBINED
During the Stealth Air Carbon fabrication process we optimize every tube and every joint to best meet the design criteria, whether to increase stiffness and responsiveness from the bottom bracket or headtube areas, or to improve compliance from the rear triangle for better grip and comfort. The stiffness and responsiveness of the main frame is specially noticeable when you put the power down and lends itself to greater pedalling efficiency and acceleration on hardpack.



Altogether, the compliance of the seat stays combined with the stiffness of the frame equal greater average speed over unforgiving terrain. It's something you’ll notice from the very first time you turn the cranks.

5 FRAME SIZES, 1000’s OF RIDERS
ARID comes in 5 sizes, including the new M/L for riders who found other Mondrakers to be a little small in size M and a little large in size L. We want our pioneering Forward Geometry to work for you, and to make that happen you need to be on a frame that’s the right size. That’s no longer going to be a problem with 5 frame sizes to choose from: S, M, ML, L and XL.

50mm wide tyre
We’ve really gone to town on the details. ARID has HHG internal cable guidance, a UDH derailleur hanger for stiffness and shifting precision, six water-bottle mounts you can use to various ends, and generous frame and fork dimensions for up to 50mm wide tyres for riders looking to tackle the roughest of terrains. The bike also features the all-new Mondraker ‘Carry-On’ downtube storage system so you can carry your belongings without the need for packs that would otherwise spoil the looks of your ARID.

CARRY-ON
Three custom-made, internal yet easily accessible, velcro fasteners keep things neat and tidy and mean that you won’t need additional packs or accessories for those shorter trips. One of the bags is specifically designed to carry a spare tube and tyre levers. Another for a mini-pump or CO2 cannisters, and the third for a multitool… or… you can use them for whatever fits your needs better on the day.

WATER BOTTLES WHEREVER YOU WANT
When it comes down to it, gravel biking is a very personal discipline. If you’re the one deciding how you want to ride your ARID, you should to be the one configuring it too. You have the traditional bottle mounts in the main frame triangle, but there are also bottle mounts under the downtube near the bottom bracket and up to three alternative bottle mounting points on each fork leg. There are even bottle-mount threads on top of the top tube near the headtube! Every ARID has the ability to be unique, it’s up to you to put your stamp on yours.
Technical Information
  • Frame

    Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

    Sizes

    S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

    Fork

    Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

    Headset

    Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

    Stem

    Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

    Handlebar

    Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm

    Grips

    Onoff HEX Bartape

    Seatpost

    Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm

    Saddle

    Fizik Vento Argo X5 140mm

    Front brake

    Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

    Rear brake

    Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

    Brake lever

    Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers

    Rims

    Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers

  • Spokes

    Mavic Steel J Bent spokes

    Front hub

    Mavic, 12x100mm, Centerlock

    Rear hub

    Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, HG Freehub

    Front tire

    Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

    Rear tire

    Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead

    Crankset

    Sram Apex 1 Wide, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5

    Rings

    Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,

    Bottom bracket

    Sram DUB T47 BSA, sealed bearings, 85,5mm

    Chain

    Sram GX Eagle T-Type, 12s Flattop, Powerlock

    Rear derrailleur

    Sram S1000 Eagle AXS T-Type, 12s

    Shift levers

    Sram Apex AXS D1 12s,

    Casette

    Sram XS-1270, 10-52T, T-Type, 12s

    Weight

    9,9 kg
