Mondraker

Mondraker Zendit XR in Admiral Blue

£10,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

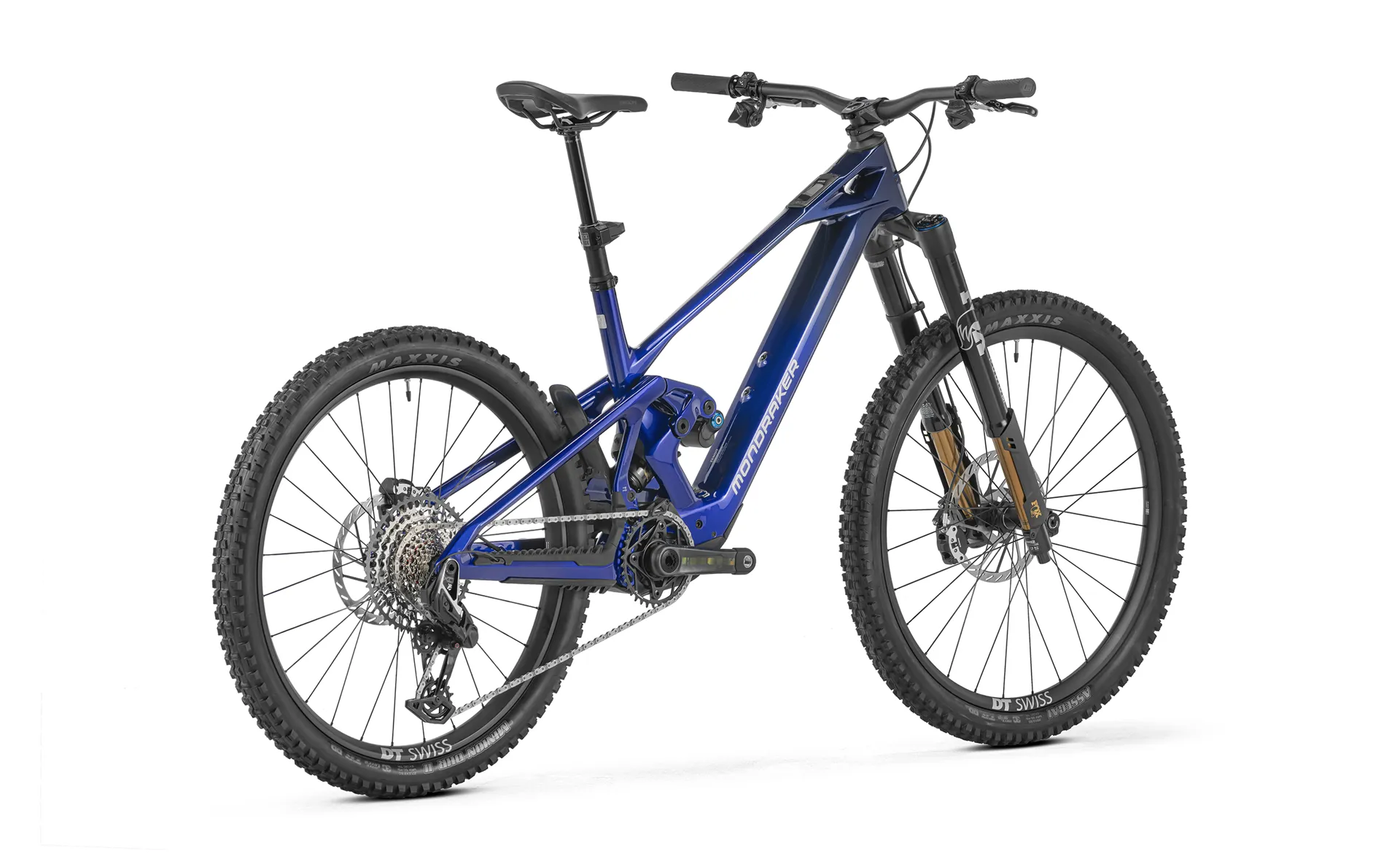

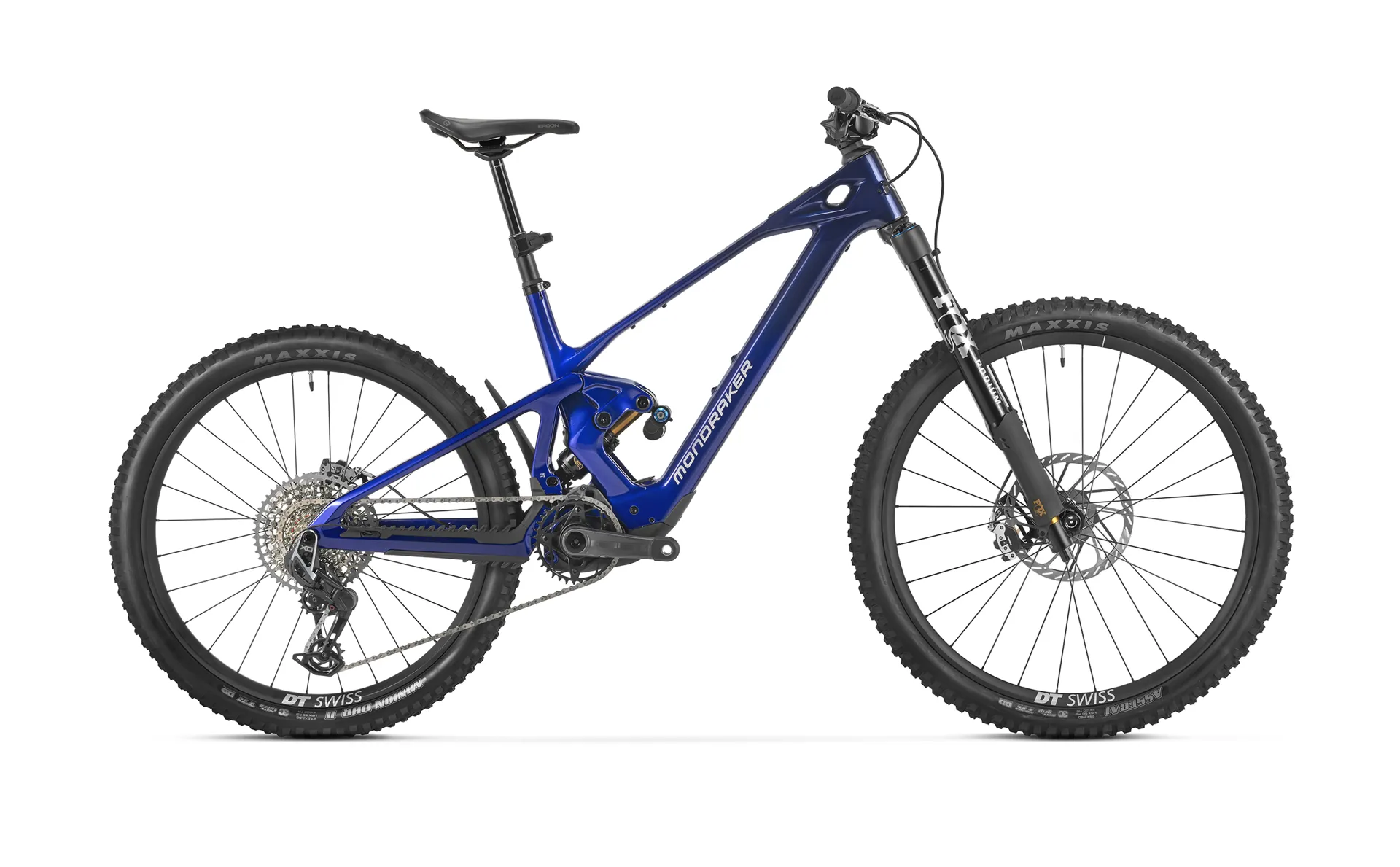

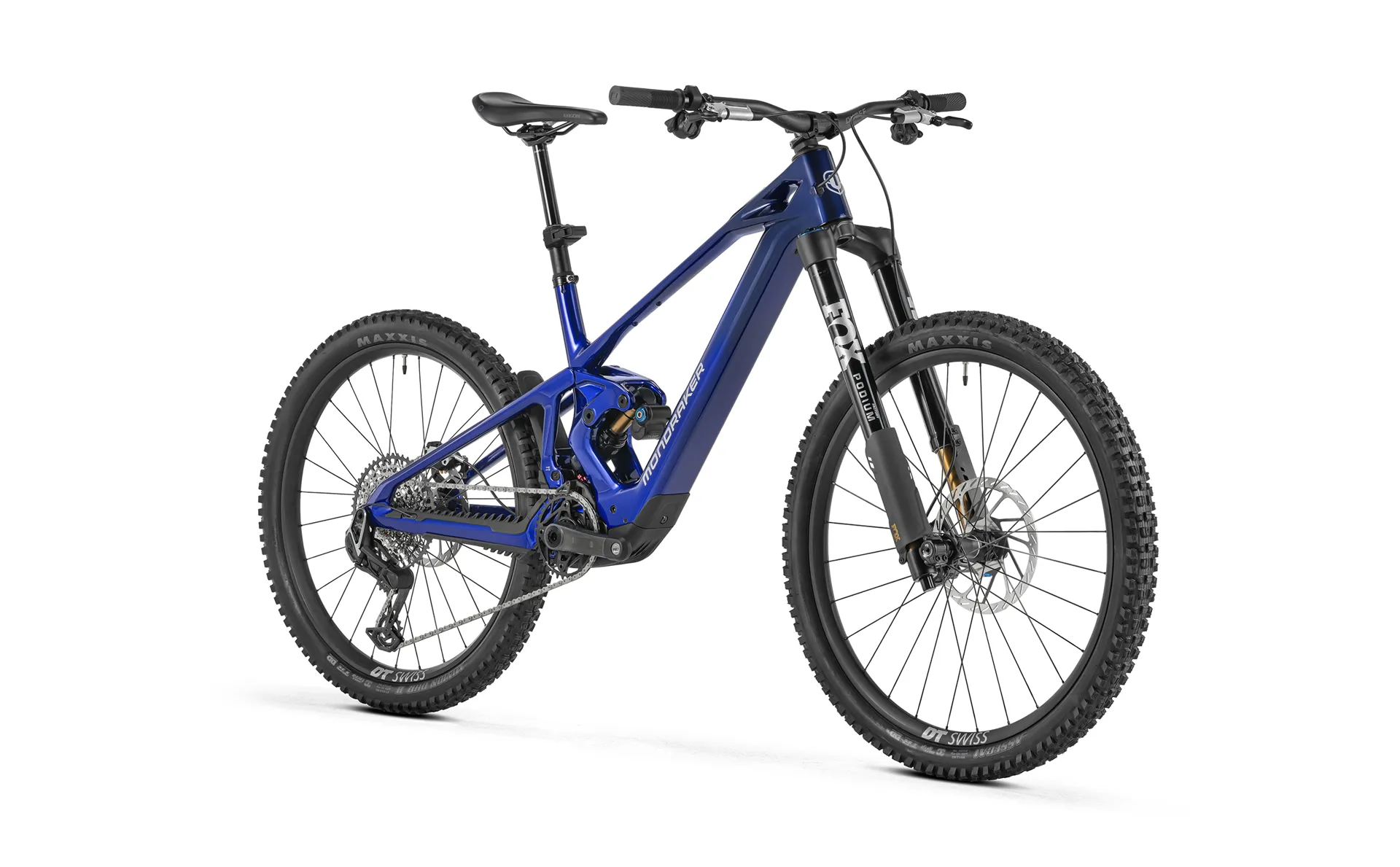

Mondraker Zendit XR in Admiral Blue

Season:2026

Brand:Mondraker

Code:010.2721ZENDXRBL

ZENDITwas created for those who see the mountains as a challenge, as a place to push the boundaries.A bike with character, energy, and an almost instant response to every challenge. When the slope steepens, the ride gets faster and the terrain becomes unpredictable, everything falls into place. ZENDITunleashes its full potential.

Feel free, with a power that’s hard to contain. Turn every ride into an even more intense experience.Because it’s not just about going further, but doing so with the confidence and determination of someone who knows they’re in control, even in the most demanding situations.

Mullet 170mm 165mm Avinox M2S 800 Wh Carbon
  • Rear shock · Fox Float X2 Factory Kashima
  • Fork · Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm
  • Brakes · Sram Maven Ultimate
  • Motor · Avinox M2S Drive Unit
  • Battery · Avinox 800Wh Battery / Avinox 12A Charger
Technical Information

Technical specs

  • frame

    Frame

    Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float X2 Factory Kashima 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.

    shock settings

    Shock settings

    CS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers.

  • fork

    Fork

    Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

    headset

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.

  • stem

    Stem

    Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.

    handlebar

    Handlebar

    Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.

    seatpost

    Seatpost

    RockShox Reverb AXS, diameter 31.6mm, w/AXS Pod Controller Rocker Paddle. S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm.

  • saddle

    Saddle

    Ergon SM10 E-Mountain Black.

    front brake

    Front brake

    Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brake

    Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    brake lever

    Brake lever

    Sram Maven Ultimate , Carbon lever, SwingLink and lever pivot bearings, tools-free reach adjust

  • rims

    Rims

    DT Swiss Hybrid HXC 1500 Spline, Carbon, 30mm internal width, tubeless ready, 28 spokes.

    spokes

    Spokes

    DT Swiss Straightpull spokes, DT Hybrid II, black

  • front hub

    Front hub

    DT Swiss 350, 20x110mm Boost, Disc IS (6-bolt).

    rear hub

    Rear hub

    DT Swiss 240 Classic with 72T Ratchet DEG System, Boost 12x148mm, IS 6 bolts, XD freehub

  • front tire

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

  • crankset

    Crankset

    e*thirteen Helix Race Carbon e*spec. All sizes: 155mm

    rings

    Rings

    Sram Eagle 36T T-Type, 104BCD, steel, CL55

  • chain

    Chain

    Sram GX Eagle T-Type, 12s Flattop, w/Powerlock

    rear derrailleur

    Rear derrailleur

    Sram X0 Eagle AXS T-Type, 12s

  • shift levers

    Shift levers

    Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s

    casette

    Casette

    Sram XS 1275, 10-52T, T-Type, 12s

  • others

    Others

    Sram AXS Extension Cord / Avinox 12A Charger

    weight

    Weight

    23.1 Kg

  • display

    Display

    Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

    motor

    Motor

    Avinox M2S

  • battery

    Battery

    Avinox 800Wh Battery

Sizing Information
Frame size
SMM/LLXL
ASeattube length380mm410mm435mm460mm490mm
BToptube length586mm606mm628mm650mm672mm
CBottom bracket drop6mm6mm6mm6mm6mm
DBottom bracket height345mm345mm345mm345mm345mm
EChainstay length450mm450mm450mm455mm455mm
FSeat tube angle73.5°73.5°73.5°73.5°73.5°
GEffective seattube angle77°77°77°77°77°
HHeadtube angle63.5°63.5°63.5°63.5°63.5°
IFork Offset44mm44mm44mm44mm44mm
JWheelbase1241mm1261mm1286mm1315mm1339mm
KHeadtube length110mm110mm120mm130mm140mm
LReach440mm460mm480mm500mm520mm
MStack631mm631mm640mm649mm658mm
