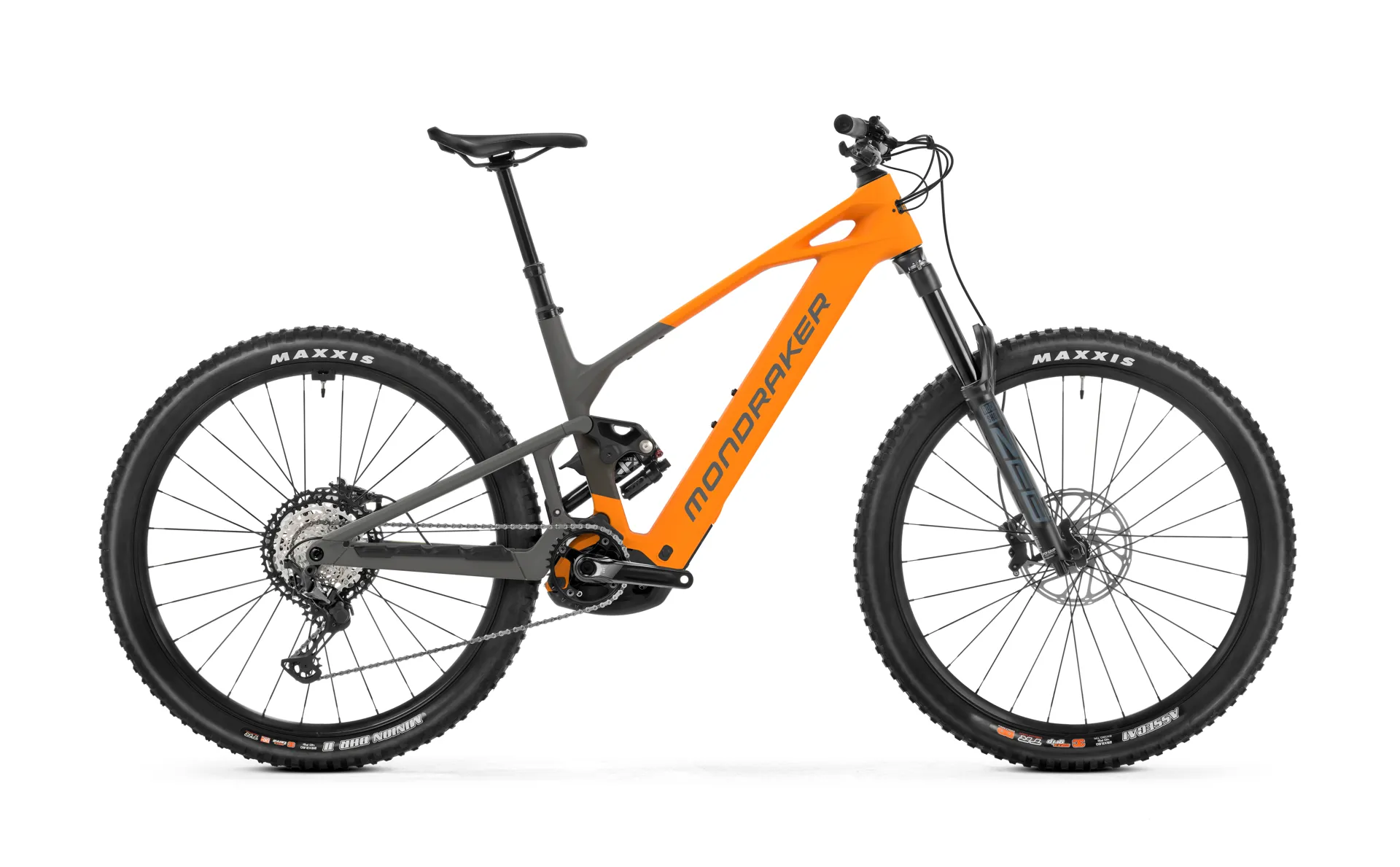

Mondraker Crafty Carbon S in Atomic Orange Size: M/L

Season:2026

Brand:Mondraker

Code:010.26296

29" 160 mm 150 mmBosch CX
800 WhCarbon / Alloy
  • Rear shock · Fox Float-X LV Performance
  • Fork · RockShox ZEB Base Rush RC 29
  • Front brake · Sram DB8
  • Rear derrailleur · Sram 70 Eagle, T-Type, 12s

Bosch Performance Upgrade 2.0 for the Bosch CX-R motor.

From May 2026, this update will allow the maximum motor torque to be increasedfrom 100 Nm to 120 Nmon any 5th-generation Bosch CX or CX-R motor, as well as increasing the maximumpedal assistance from 400% to up to 600%.

More torque to tackle the toughest climbs. More push in technical sections. More acceleration for those tricky sections. More power when the terrain gets tougher.

But the difference isn’t just in the numbers.

CARBON FIBRE: THROUGHOUT

Crafty Carbon counts on anall-new carbon fibre frame manufactured from Stealth Air Carbon.There are5 builds available in 5 different sizeswith two different chainstay lengths depending on size. The R and RR builds are built on a carbon fibre frame with an aluminium rear triangle.The other 3 builds, the RR S, XR and RR SL are carbon fibre throughout.

BOSCH CX PERFORMANCE: LATEST VERSION

A significant update to the new Crafty Carbon range, is the addition of the highly anticipated, totally revamped 2025 Bosch Performance CX. The market leader among full power motors, the CX has been an intrinsic part of every Crafty Carbon since its launch in 2020. Bosch’s new motor incorporates an updated design architecture with two mounting points instead of three, a 100g reduction in weight and a reduction in its overall size.

This updated Bosch CX has the same 85Nm of torque and 600W peak power as the previous modelbut offers far better power delivery and control.Motor noise is reduced while pedalling and coasting, and mechanical rattles when riding downhill have been eliminated altogether.

The CX’s new software and electronics, together with the improved kinematics of the new Zero Suspension System, meanthe Crafty Carbon offers improved performance in all conditions and on all terrain types.The new motor also boasts reduced drag when pedalling above 25km/h

REMOVABLE BATTERIES: 800Wh AND 600Wh.

Crafty Carbon range has a possibility to fit both the 800Wh or 600Wh batteries.R and RR models feature the new 800WhBosch batteries as original equipment and the more sophisticatedRR S, XR and RR SL models are fitted with the lighter 600Wh version.Both batteries have been completely upgraded and optimised with the new generation of 21700 cells with higher energy density which, in combination with the new hardware and software improvements of the new Performance CX Bosch motor with renewed electronics,provide improved efficiency with longer battery range and a much lower weight compared to the previous generation.More kilometres, more fun.

EXTRA RANGE: WITH THE 250Wh POWERMORE

All models and frame sizes of the Crafty Carbon offer Powermore range extender compatibility. An extra 250Wh to extend your range or to conquer that last gnarly climb, it’s easily fixed to the main bottle mount on the downtube. Weighing in at around 1.5Kg it’s light and easy to carry either on the frame or in a backpack.

THE REDUCED SYSTEM WEIGHT

The reduced system weight of themotor and 800Wh battery combined results in a 500g weight savingcompared to the previous generation Crafty with the 750Wh battery.

The Crafty Carbon R and RR come fitted with the800Wh battery for greater range,while the RR S, XR and RR SL modelscome with the 600Wh version to keep the weight down.That said, the batteries are removable (and interchangeable) via a quick-lock system.

NEW FORWARD GEOMETRY

The kinematics have been optimised too, with the new Crafty Carbon range taking advantage of our updated Zero Suspension System to offer better small bump compliance, better shock absorption and better top-out characteristics. Grip when climbing also receives a significant boost, regardless of terrain.

FLIP CHIP

The new design is alsoone degree slacker than the previous generation of Crafty Carbon,making the 2025 model more stable at speed. As well as the new 64.5° head angle, the new frame also comes with atwo-position (standard and low) flip chip on the lower shock mountwhich means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.

AIM: OPTIMIZATION

As with the recently released SLY,Crafty Carbon now comes in 5 different sizes thanks to the addition of an ‘ML’ option.

A standout feature is theincorporation of two different chainstay lengths dependant on frame size.Chainstay length has a significant impact on how a bike handles, and gone are the day of one-size-fits-all. By having two different chainstay lengths we can keep the same ‘feel’ of a Crafty Carbon regardless of frame size. Forward Geometry is thus optimized by adapting chainstay length to frame size.The S, M, and ML sizes get 455mm chainstays, while the L and XL sizes grow by one centimetre to 465mm,ensuring that regardless of frame size the ride ‘feel’ stays consistent throughout the range. Crafty Carbon is our first bike to offer two different chainstay lengths.

Technical Information

Technical specs

  • frame

    Frame

    Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

    sizes

    Sizes

    S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    shock settings

    Shock settings

    CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer

  • fork

    Fork

    RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload

    headset

    Headset

    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

  • stem

    Stem

    Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

    handlebar

    Handlebar

    Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

    seatpost

    Seatpost

    X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200

  • saddle

    Saddle

    Ergon SM-10

    front brake

    Front brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    brake lever

    Brake lever

    Sram DB8 Stealth, tool reach adjust, lever pivot bushings

  • rims

    Rims

    WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

    spokes

    Spokes

    WTB Straight gauge spokes & black brass locking nipples

  • front hub

    Front hub

    WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts

    rear hub

    Rear hub

    WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub

  • front tire

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

  • crankset

    Crankset

    E.13 Helix Core E*Spec Plus, All sizes: 160mm

    rings

    Rings

    Sram Eagle 34T T-Type, direct mount, steel, CL55

  • chain

    Chain

    Sram 70 T-Type, 12s Flattop, PowerLock

    rear derrailleur

    Rear derrailleur

    Sram 70 Eagle, T-Type, 12s

  • shift levers

    Shift levers

    Sram Trigger 70, 12s, T-Type Actuation

    casette

    Casette

    Sram XS-1270, 10-52T, 12s

  • weight

    Weight

    24,3 kg

    display

    Display

    Kiox 400C / Bosch Mini Remote

  • motor

    Motor

    Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

    battery

    Battery

    Bosch Powertube 800Wh

Sizing Information
Frame size
S [Std/Low]M [Std/Low]M/L [Std/Low]L [Std/Low]XL [Std/Low]
ASeattube length380 mm410 mm435 mm460 mm490 mm
BToptube length581 mm/582 mm596 mm/597 mm618 mm/619 mm640 mm/641 mm662 mm/663 mm
CBottom bracket drop-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm
DBottom bracket height350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm
EChainstay length455 mm/456 mm455 mm/456 mm455 mm/456 mm465 mm/466 mm465 mm/466 mm
FSeat tube angle73°/72.65°73°/72.65°73°/72.65°73°/72.65°73°/72.65°
GEffective seattube angle77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°
HHeadtube angle64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°
IFork Offset44 mm44 mm44 mm/44 mm44 mm44 mm/44 mm
JWheelbase1240 mm/1241 mm1255 mm/1256 mm1280 mm/1281 mm1314 mm/1315 mm1338 mm/1339 mm
KHeadtube length120 mm120 mm130 mm140 mm150 mm
LReach445 mm/441 mm460 mm/456 mm480 mm/476 mm500 mm/496 mm520 mm/516 mm
MStack638 mm/641 mm638 mm/641 mm647 mm/650 mm656 mm/659 mm665 mm/668 mm
