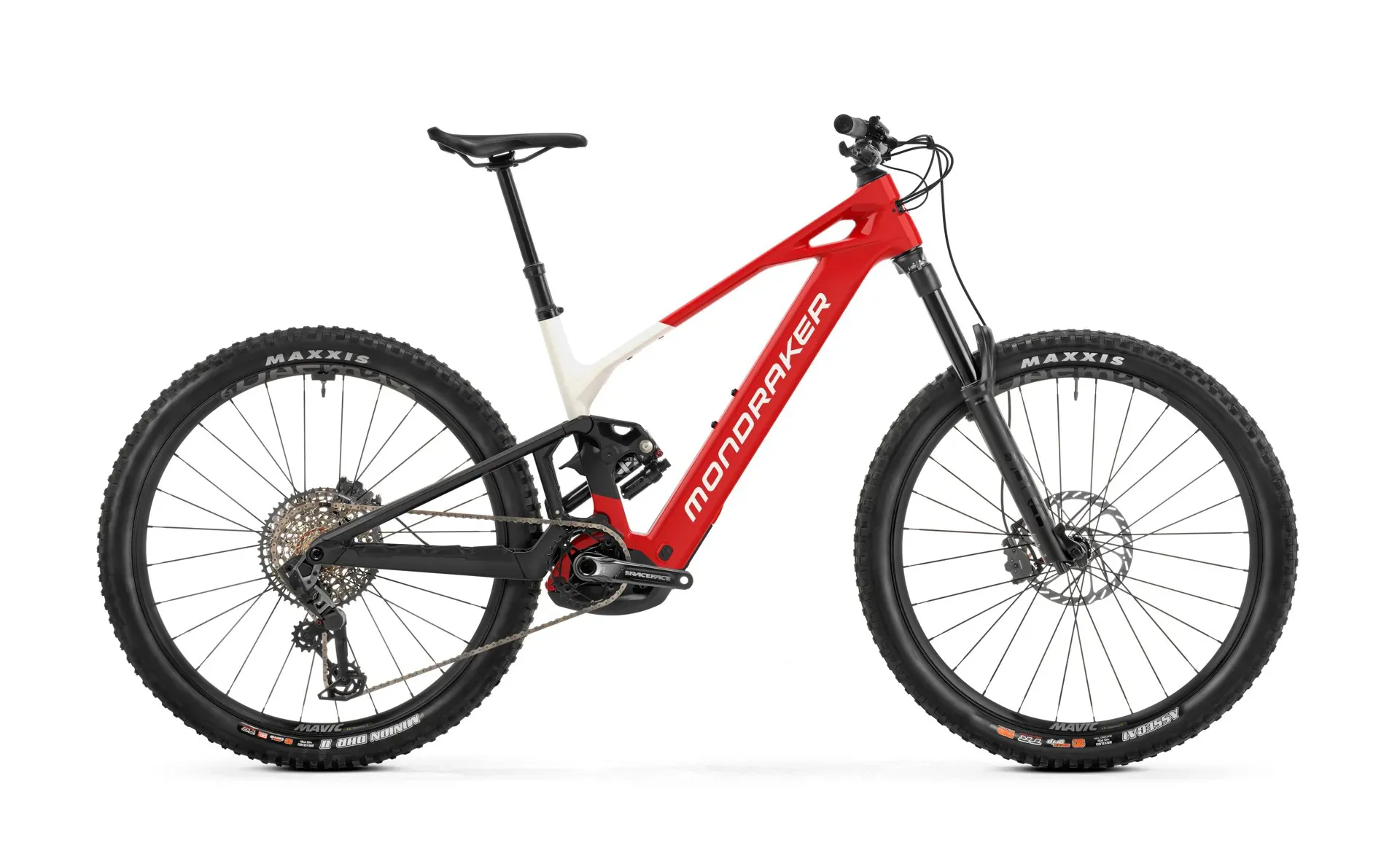

Mondraker Crafty Carbon R in Chili Red Size: ML

Season:2026

Brand:Mondraker

Code:010.26306

29" 160 mm 150 mmBosch CX
800 WhCarbon / Alloy

  • Rear shock · Fox Float-X LV Performance
  • Fork · Fox 38 29 Float GRIP Performance
  • Brake lever · Sram Maven Base
  • Rear derrailleur · Sram S1000 Eagle AXS T-Type, 12s

Bosch Performance Upgrade 2.0 for the Bosch CX-R motor.

From May 2026, this update will allow the maximum motor torque to be increasedfrom 100 Nm to 120 Nmon any 5th-generation Bosch CX or CX-R motor, as well as increasing the maximumpedal assistance from 400% to up to 600%.

More torque to tackle the toughest climbs. More push in technical sections. More acceleration for those tricky sections. More power when the terrain gets tougher.

But the difference isn’t just in the numbers.

CARBON FIBRE: THROUGHOUT

Crafty Carbon counts on anall-new carbon fibre frame manufactured from Stealth Air Carbon.There are5 builds available in 5 different sizeswith two different chainstay lengths depending on size. The R and RR builds are built on a carbon fibre frame with an aluminium rear triangle.The other 3 builds, the RR S, XR and RR SL are carbon fibre throughout.

BOSCH CX PERFORMANCE: LATEST VERSION

A significant update to the new Crafty Carbon range, is the addition of the highly anticipated, totally revamped 2025 Bosch Performance CX. The market leader among full power motors, the CX has been an intrinsic part of every Crafty Carbon since its launch in 2020. Bosch’s new motor incorporates an updated design architecture with two mounting points instead of three, a 100g reduction in weight and a reduction in its overall size.

This updated Bosch CX has the same 85Nm of torque and 600W peak power as the previous modelbut offers far better power delivery and control.Motor noise is reduced while pedalling and coasting, and mechanical rattles when riding downhill have been eliminated altogether.

The CX’s new software and electronics, together with the improved kinematics of the new Zero Suspension System, meanthe Crafty Carbon offers improved performance in all conditions and on all terrain types.The new motor also boasts reduced drag when pedalling above 25km/h

REMOVABLE BATTERIES: 800Wh AND 600Wh.

Crafty Carbon range has a possibility to fit both the 800Wh or 600Wh batteries.R and RR models feature the new 800WhBosch batteries as original equipment and the more sophisticatedRR S, XR and RR SL models are fitted with the lighter 600Wh version.Both batteries have been completely upgraded and optimised with the new generation of 21700 cells with higher energy density which, in combination with the new hardware and software improvements of the new Performance CX Bosch motor with renewed electronics,provide improved efficiency with longer battery range and a much lower weight compared to the previous generation.More kilometres, more fun.

EXTRA RANGE: WITH THE 250Wh POWERMORE

All models and frame sizes of the Crafty Carbon offer Powermore range extender compatibility. An extra 250Wh to extend your range or to conquer that last gnarly climb, it’s easily fixed to the main bottle mount on the downtube. Weighing in at around 1.5Kg it’s light and easy to carry either on the frame or in a backpack.

THE REDUCED SYSTEM WEIGHT

The reduced system weight of themotor and 800Wh battery combined results in a 500g weight savingcompared to the previous generation Crafty with the 750Wh battery.

The Crafty Carbon R and RR come fitted with the800Wh battery for greater range,while the RR S, XR and RR SL modelscome with the 600Wh version to keep the weight down.That said, the batteries are removable (and interchangeable) via a quick-lock system.

NEW FORWARD GEOMETRY

The kinematics have been optimised too, with the new Crafty Carbon range taking advantage of our updated Zero Suspension System to offer better small bump compliance, better shock absorption and better top-out characteristics. Grip when climbing also receives a significant boost, regardless of terrain.

FLIP CHIP

The new design is alsoone degree slacker than the previous generation of Crafty Carbon,making the 2025 model more stable at speed. As well as the new 64.5° head angle, the new frame also comes with atwo-position (standard and low) flip chip on the lower shock mountwhich means you can modify the bottom bracket height by +/- 0.5mm and the seat and head tube angles by +/-0.35° to better suit your style or terrain type.

AIM: OPTIMIZATION

As with the recently released SLY,Crafty Carbon now comes in 5 different sizes thanks to the addition of an ‘ML’ option.

A standout feature is theincorporation of two different chainstay lengths dependant on frame size.Chainstay length has a significant impact on how a bike handles, and gone are the day of one-size-fits-all. By having two different chainstay lengths we can keep the same ‘feel’ of a Crafty Carbon regardless of frame size. Forward Geometry is thus optimized by adapting chainstay length to frame size.The S, M, and ML sizes get 455mm chainstays, while the L and XL sizes grow by one centimetre to 465mm,ensuring that regardless of frame size the ride ‘feel’ stays consistent throughout the range. Crafty Carbon is our first bike to offer two different chainstay lengths.
