Ready for city or countryside adventures, the eONE-FORTY 675 EQ is equipped with essential features.
Ready for city or countryside adventures, the eONE-FORTY 675 EQ is equipped with essential features.
Merida

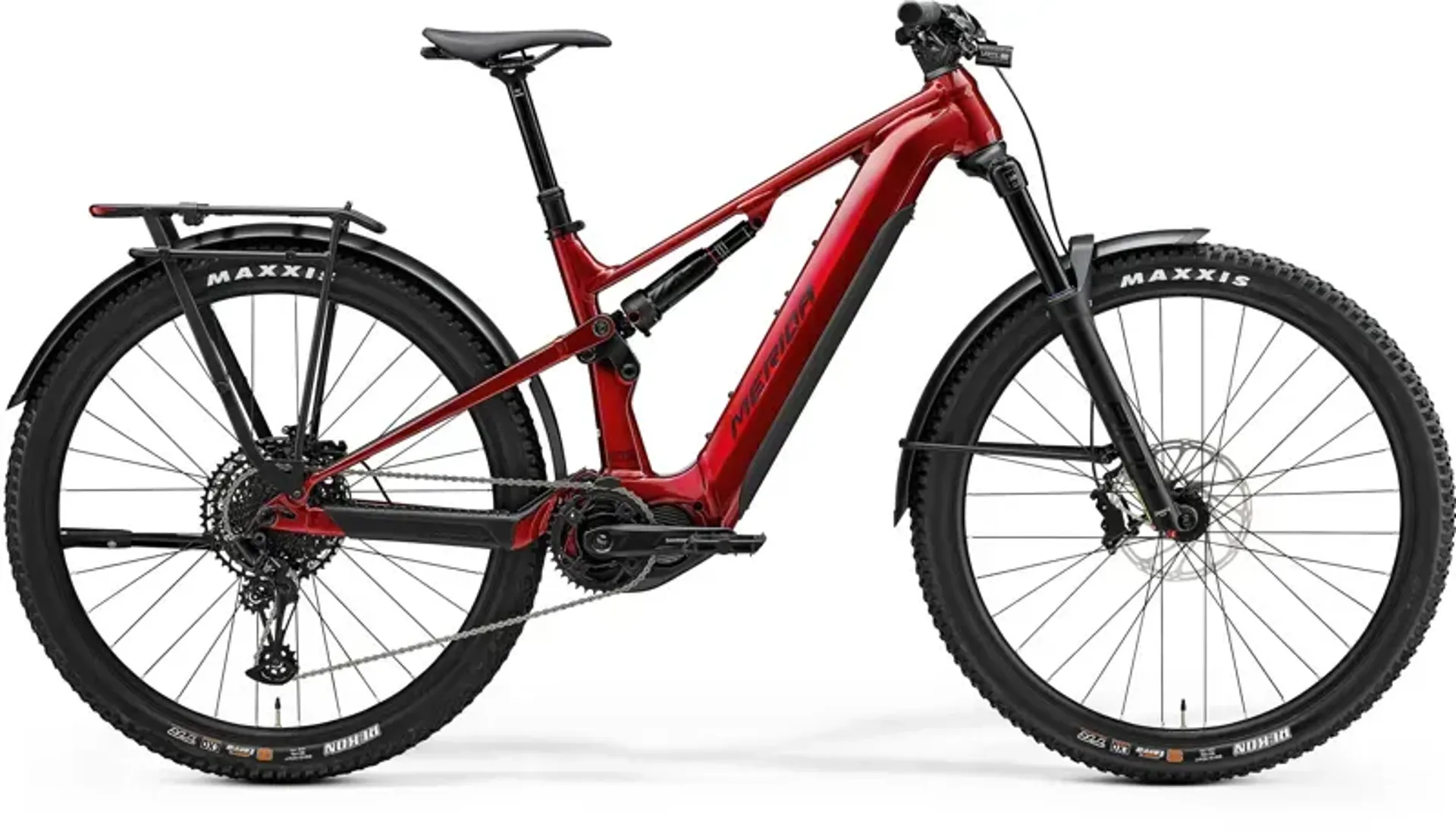

Merida eOne-Forty 675 EQ E-Road Bike In Dark Red/Black

£5,400.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

Merida eOne-Forty 675 EQ E-Road Bike In Dark Red/Black

Season:2025

Brand:Merida

Code:P-Q805

Ready for city or countryside adventures, the eONE-FORTY 675 EQ is equipped with essential features.

The eONE-FORTY 675 EQ features a tough aluminium frame and a 750 Wh user-removable battery, offering a huge assisted range. This range can be further boosted with an optional 360 Wh range extender. With a combination of award-winning, low-maintenance suspension and the smooth Suntour Aion fork and RockShox rear shock, it can tackle any trail.

The latest eONE-FORTY is incredibly versatile, capable of handling rugged mountain bike trails and serving as a city-ready SUV partner. Its suspension platform and geometry, derived from an award-winning trail and enduro bike range, provide peerless off-road performance and confident handling. The bike offers 143 mm of rear wheel travel and 150 mm up front, with a simplified AGILOMETER sizing system for customizable handling.

The eONE-FORTY is available in fully-equipped EQ models, featuring lights, mudguards, and a rack as standard, making it an ideal rugged urban partner. The durable LITE aluminium frame, SRAM NX Eagle 12-speed drivetrain, and powerful Shimano EP801 drive unit enhance its performance. It also supports full 29" wheels with an option for mixed 'mullet' wheel sizes.

Features:

  • Durable LITE aluminium frame with 143 mm rear wheel travel.
  • Suntour Aion fork with 150 mm travel and RockShox Deluxe rear shock.
  • SRAM NX Eagle 12-speed, wide-range drivetrain.
  • User-removable 750 Wh battery with optional 360 Wh range extender.
  • Powerful Shimano EP801 drive unit.
  • Comes fully equipped with lights, mudguards, and rack.
  • Full 29" wheels with option for mixed 'mullet' wheel sizes.
Technical Information
  • Frame
    Lite IV - Hydroformed 6061 double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5 x 2.8.
  • Rear Shock
    Rock Shox Super Deluxe Select.
  • Fork
    SR Suntour SF25-AION 36X-Boost axle standard.
  • Headset
    Acros ICR Merida external neck with Blocklock.
  • Stem
    Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes.
  • Handlebar
    Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise.
  • Grip
    Merida Expert EC.
  • Brake Type
    Hydraulic disc.
  • Brake Lever
    SRAM DB8.
  • Brake Calipers
    Front: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor. Rear: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor.
  • Tyres
    Front: Maxxis Rekon; 29 x 2.4; Kevlar bead, folding; 3C EXO MaxxTerra. Rear: Maxxis Rekon; 29 x 2.4; Kevlar bead, folding; TR 3C EXO MaxxTerra.
  • Wheels
    Rims: Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); 29. Spokes: Black stainless. Front Hub: Novatec SL-ELITE D041SB-B15; 110x15mm; 32 spoke; 6 bolt. Rear Hub: Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12mm; 32 spoke; 6 bolt with Merida Expert TR; including removeable lever, 6/4mm allen key.
  • Speeds
    12 Speed.
  • Rear Derailleur
    SRAM Eagle 70.
  • Shift Levers
    Limotech RM10 (For SRAM MMX) dropper lever and SRAM Eagle 70 Transmission Shifter.
  • Chain
    SRAM Eagle 70 - Flattop.
  • Cassette
    SRAM PG-1270 Eagle; 10-50 teeth; 12 Speed.
  • Chainset
    SRAM XX Eagle Transmission E-MTB for Steps; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide.
  • Bottom Bracket
    Part of Shimano Steps motor.
  • Pedals
    VP VPE-533.
  • Saddle
    Merida Comp SL; 28% recycled material; V-mount; including Merida minitool.
  • Seat Post
    Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel.
  • Motor
    Trendpower Internal Battery Gen 2; 750Wh, Shimano EP801; 85Nm.
  • Battery Capacity
    750Wh.
  • eBike Display
    Shimano SC-EN600.
