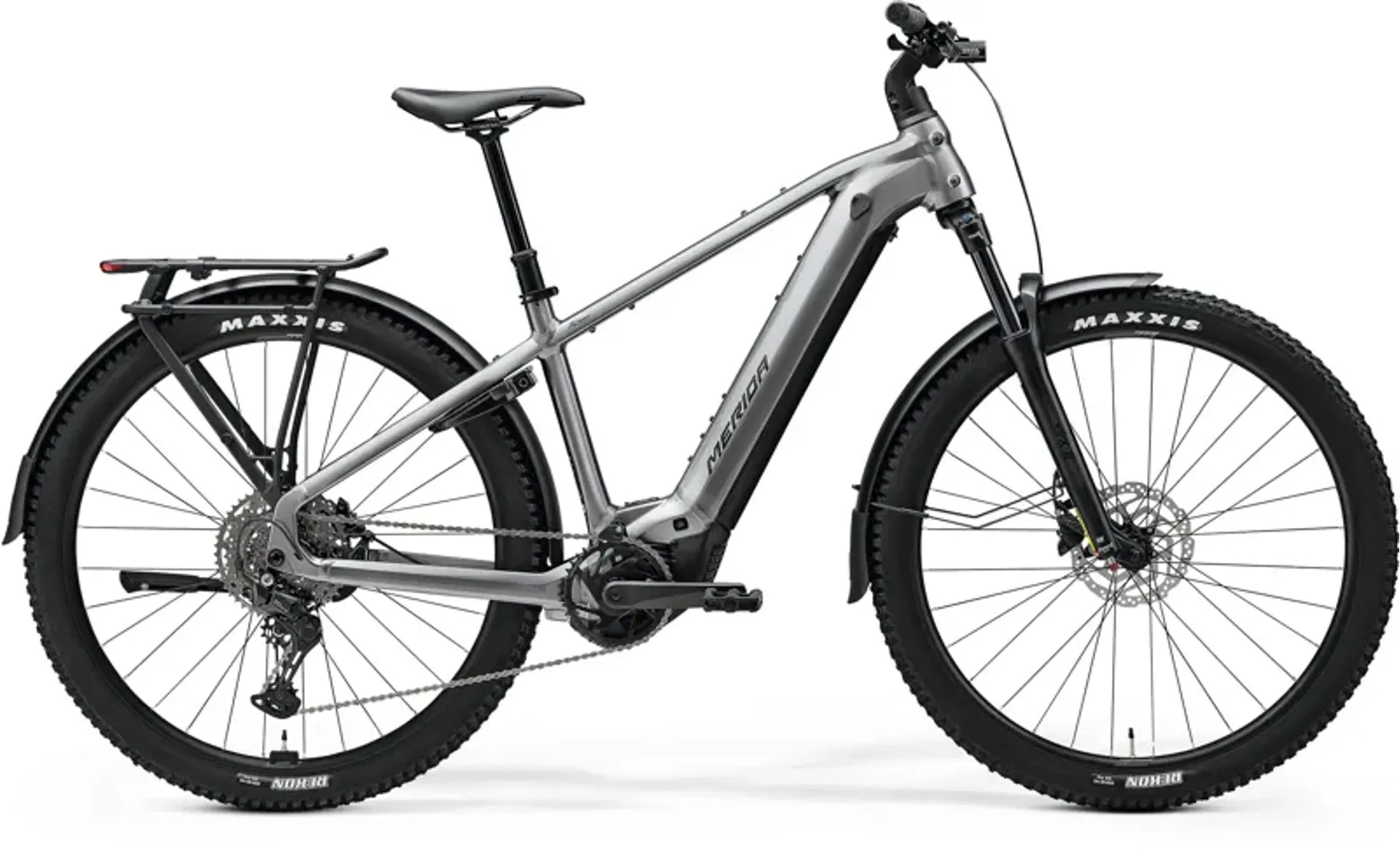

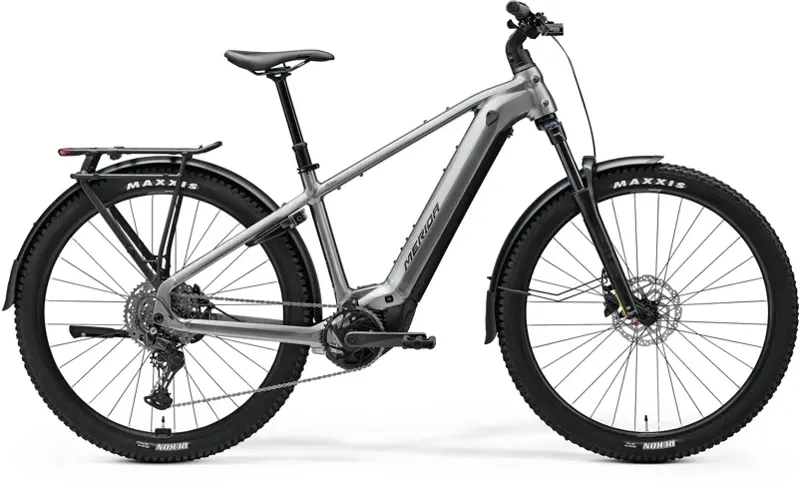

Merida eFloat CC 500 EQ E-Hybrid Bike in Gunmetal Grey/Black

Season:2026

Brand:Merida

Code:P-R925

The eFloat CC 500 is designed to take you anywhere.

With grippy 2.4 MTB tyres on smooth rolling 29 wheels plus a 120 mm Suntour suspension air fork, this model will tame broken road surfaces and off-road trails easily. Coming fully equipped with lights, lock, mudguards, a rear rack, and a kickstand, it is also an ideal City Companion. The Bosch CX drive unit and large capacity 800 Wh battery offer smooth and reliable support on hills.

Technical Information
  • Frame
    Lite II; aluminium; max. tyre size 29 x 2.4 with fender; 148x12 axle standard; intube battery
  • Fork
    SR Suntour X1-Boost; Air; 120mm travel
  • Headset
    Acros ICR Merida Integrated neck w/ Blocklock
  • Stem
    Merida Expert TK III; material: aluminium; 31.8mm diameter; length: (S-M) - 70mm, (L-XL) - 90mm
  • Handlebar
    Merida Expert CC; material: aluminium; 720mm wide; 10mm rise
  • Grip
    Merida Comp TK
  • Brake Type
    Hydraulic Disc
  • Brake Calipers
    Front: Shimano MT-200; 2 piston with Shimano RT10; 180mm Rear: Shimano MT-200; 2 piston with Shimano RT10; 180mm
  • Tyres
    Front: Maxxis Metropass AT; 29x2.4; wired Rear: Maxxis Metropass AT; 29x2.4; wired
  • Wheel Size
    29
  • Wheels
    Rims: Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves not included); Spokes: Black stainless ; black nipples Front Hub: Shimano TC500; 15x100mm; 32 spoke; Centerlock Rear Hub: Shimano TC500; 12x148mm; 32 spoke; Centerlock
  • Speeds
    10
  • Rear Derailleur
    Shimano Cues U6000; GS
  • Shift Levers
    Front: Shimano SL -MT500-L Rear: Shimano CUES U6000-10
  • Chain
    Shimano LG500
  • Cassette
    Shimano Cues LG400; 11-48 teeth; 10 Speed
  • Chainset
    FSA Direct Mount Steel Chainring; 38 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 165mm
  • Pedals
    VP VPE-891
  • Saddle
    Merida Expert TK II; V-mount
  • Seat Post
    Merida Comp TR IV; 34.9mm diameter; in-line; 150mm seat post travel
  • Motor
    Bosch PowerTube 800 ; 800Wh, Bosch Performance Line CX
  • Battery Capacity
    800Wh
  • eBike Display
    Bosch Purion 200
