Merida

eOne-Sixty 500 SE - MY24 Green/Black

£4,400.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

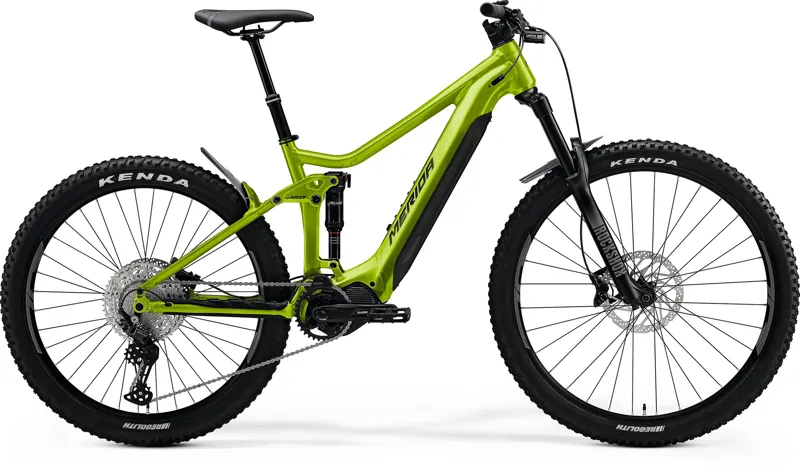

eOne-Sixty 500 SE - MY24 Green/Black

Season:2024

Brand:Merida

Code:P-P705

The merida eone-sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in merida's 50 year history. E-mountainbike gave it the 'best in test' in their 'best of 2021' emtb group test, world of MTB also gave it their 'best of 2021' award and freeride gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few.The merida eone-sixty is built around compact Shimano steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows merida designers to create very short chainstays which deliver agile and âregular bikeâ geometry. To give the e-full suspension bikes precise steering, fantastic ârolling over obstaclesâ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5 tyre and a 650b rear wheel, equipped with a slightly wider 2.6 tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails.Shimano'S e-tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising

Highlights:
Lightweight aluminium frame
Shimano Steps EP6 85Nm motor with Shimano 630Wh internal battery
RockShox 35 Gold RL Air fork and RockShox Deluxe Select+ rear shock
SRAM DB8 4 piston hydraulic disc brakes
SRAM NX Eagle 12 speed
Aluminium full suspension eBike with 85Nm Shimano Steps EP6 motor and Shimano 630Wh battery. RockShox Suspension, SRAM hydraulic brakes and SRAM NX Eagle 12 speed drivetrain
The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and “regular bike” geometry. To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails. Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
Technical Information
SPECIFICATION
FRAME
Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
MOTOR
Shimano Steps EP6; 85Nm
BATTERY
Shimano EN806; 630Wh internal battery
BATTERY CAPACITY
630Wh
EBIKE DISPLAY
Shimano SC-EN600
CHARGER
Shimano EC-E6002; 2A Charging current
POWER BUTTON
CAP-045, Merida Power Button
MODE SWITCH
Shimano SW-EN600-L
SHOCK
RockShox Deluxe Select+; platform
FORK
Rock Shox 35 Gold RL; Air; 160mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.8"
GEARS
12
SHIFTERS
Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed
REAR DERAILLEUR
SRAM NX Eagle
BOTTOM BRACKET
Part of Shimano Steps motor
CHAIN
SRAM SX Eagle
CHAINSET
SAMOX EMA04; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
CASSETTE
SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
BRAKE LEVER
SRAM DB8
FRONT BRAKE
SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
REAR BRAKE
SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
GRIP
Merida Expert EC
HANDLEBAR
Merida Expert eTR; 780mm wide; 20mm rise
STEM
Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET
Merida-8152
PEDAL
VP Components - VPE-537
SADDLE
Merida Comp SL with V-mount
SEAT POST
JD Components; 30.9mm diameter; in-line; XS/S 100mm - M/L 125mm - XL 150mm seat post travel
WHEEL SIZE
29" / 27.5"
RIMS
Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included)
SPOKES
Black stainless
FRONT HUB
Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt
REAR HUB
Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE
Kenda Regolith; 29" x 2.4"; wire bead
REAR TYRE
Kenda Regolith; 27.5" x 2.6"; wire bead
COLOUR
Green/Black
SEASON
2024
FRONT LIGHT
Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT
USB rear Light CG-214RG
OTHER
Shiamno Satellite charging port; EW-CP100
