Velduro Rogue M2s Frameset with Fox X2 Shock

Season:2027

Brand:Velduro

Code:VEL-ROGFSX2

The Rogue's modular frame has been designed to adapt to your needs and riding style with the easiest of adjustments. Adjust the travel, tweak the geo or switch wheel sizes (29er or mixed) and customise your ride to create your Ultimate Dream Build. In Standard Mode (170mm fork / 165mm rear), it's a trail-taming weapon. Switch to All-Mountain Mode (160mm front/rear) for flowy, high speed precision, or unleash Full Enduro Mode (180mm front / 170mm rear) to conquer anything you can throw at it.

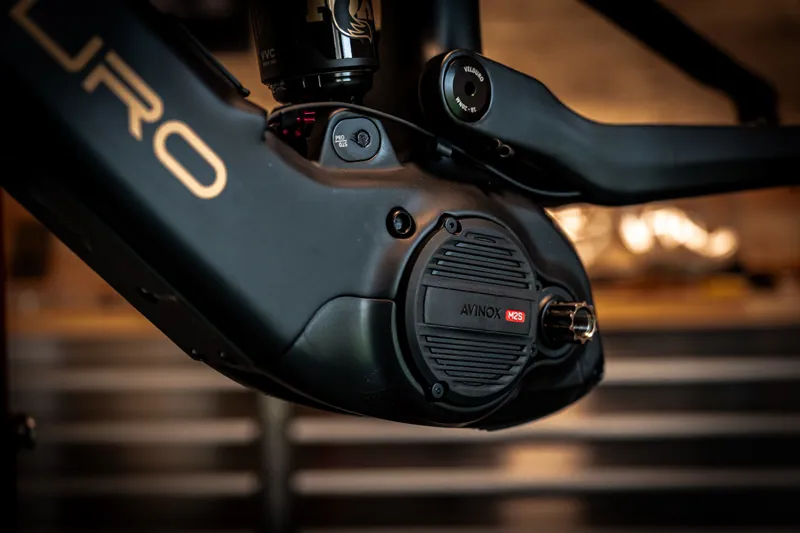

At its core is the customisableDJI Avinox drive system, delivering smooth, intuitive power through an integrated800Wh battery, giving you the freedom to ride harder and further than ever.

WHATS INCLUDED

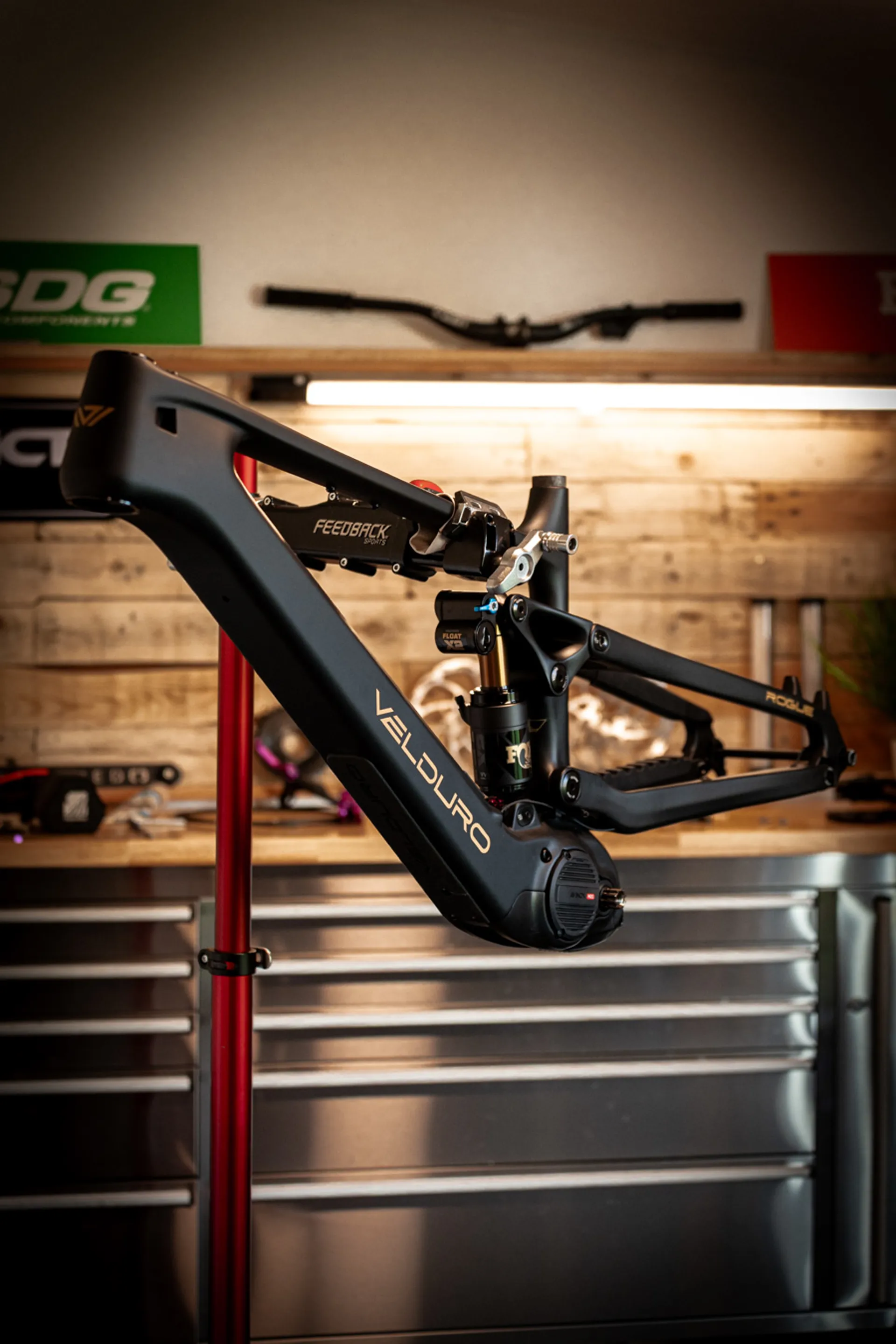

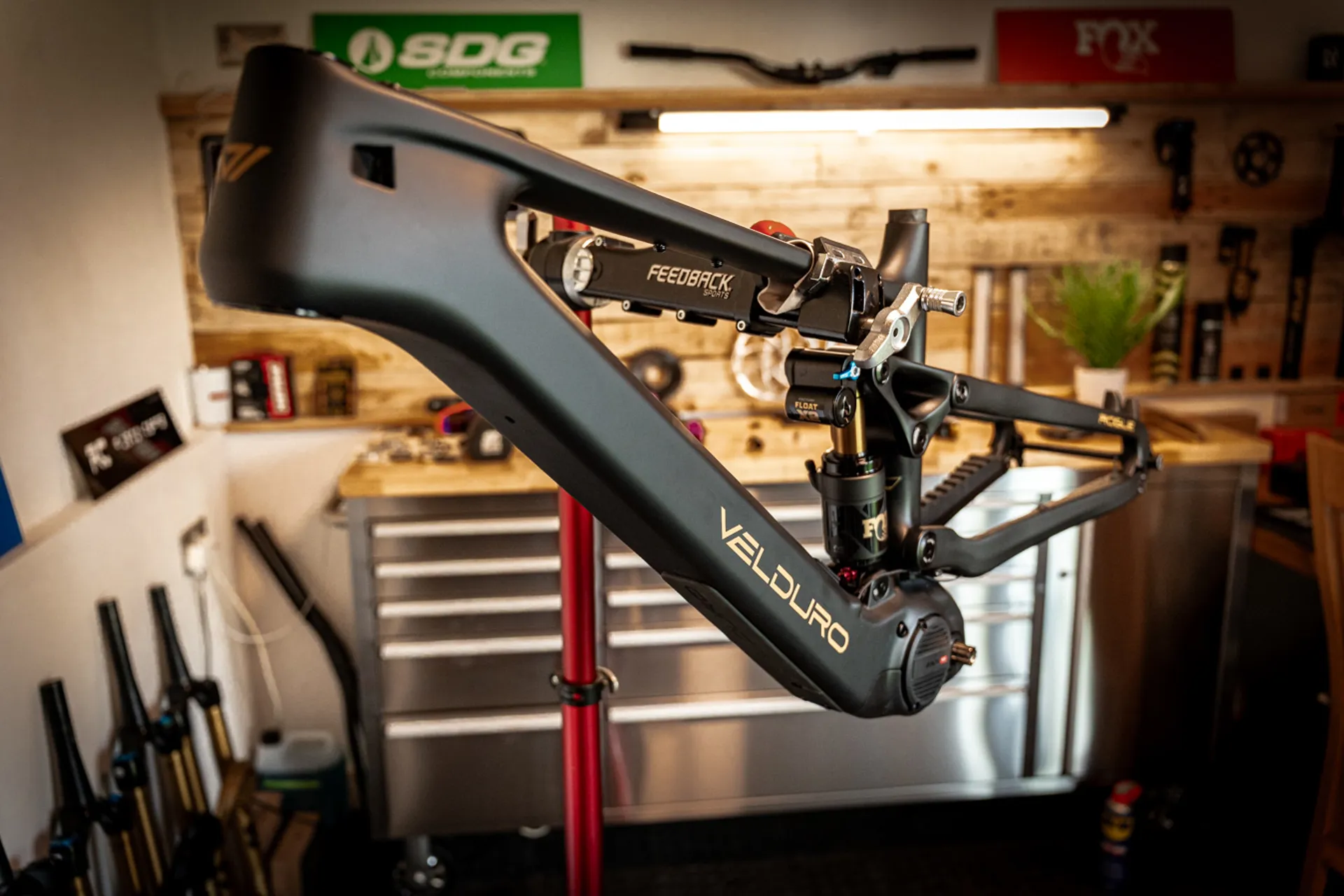

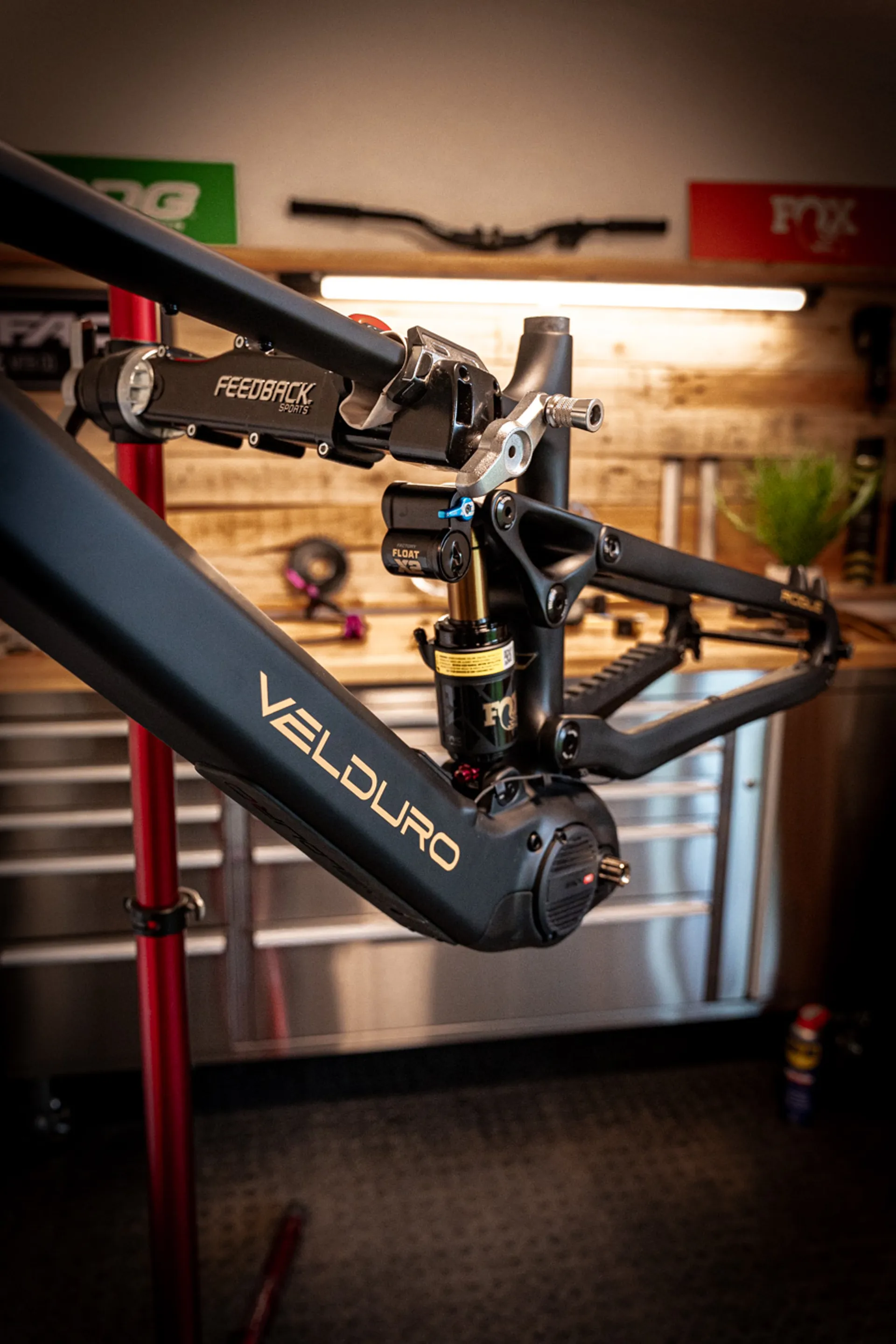

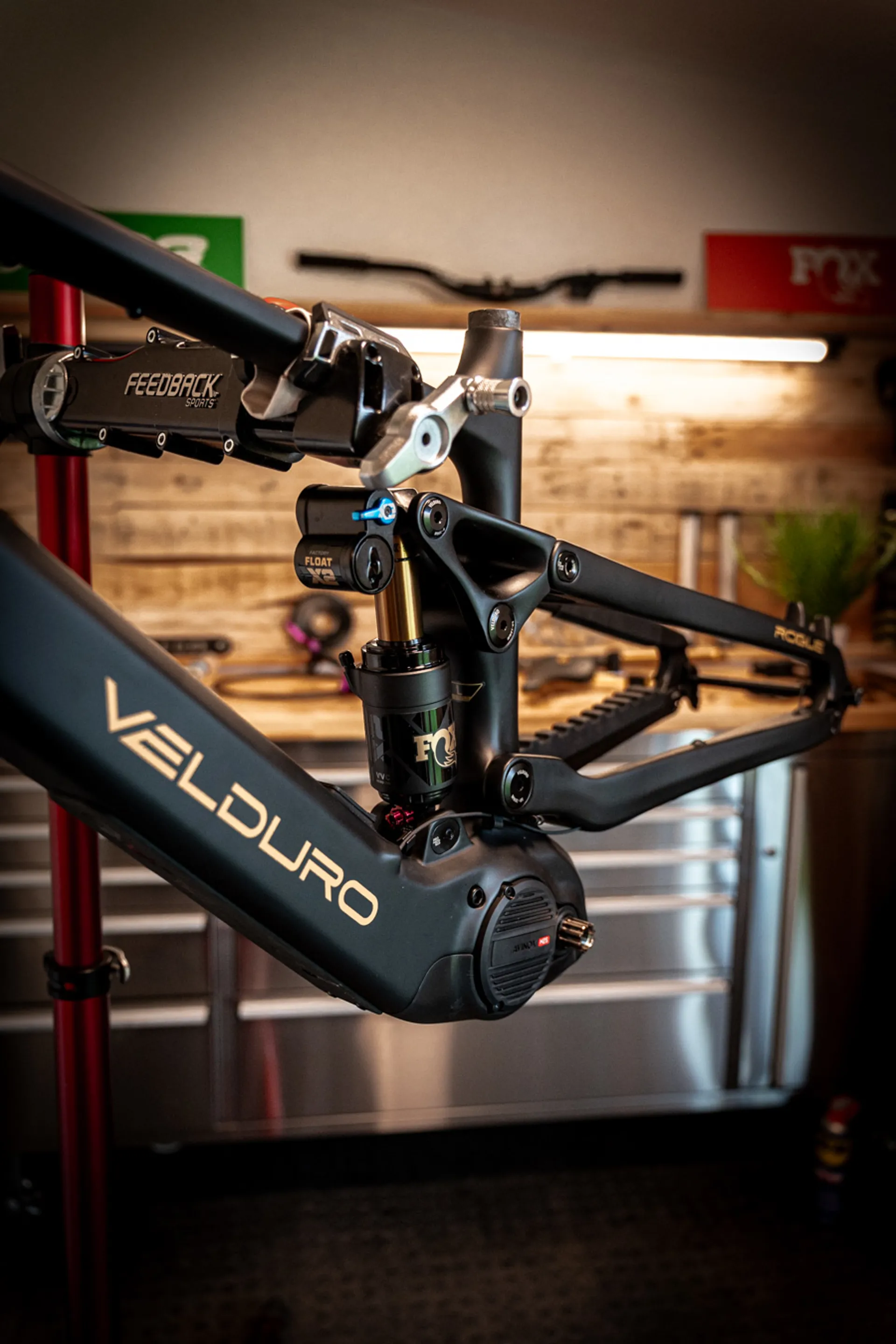

Rogue carbon frame
16T CNC idler with idler guide
FSA No.57 ZS44/56 headset
Rogue motor cover
Rogue charge port cover
12X148 rear thru axle
UDH Hanger
Bottle cage screws
Seatpost clamp
Cable lugs

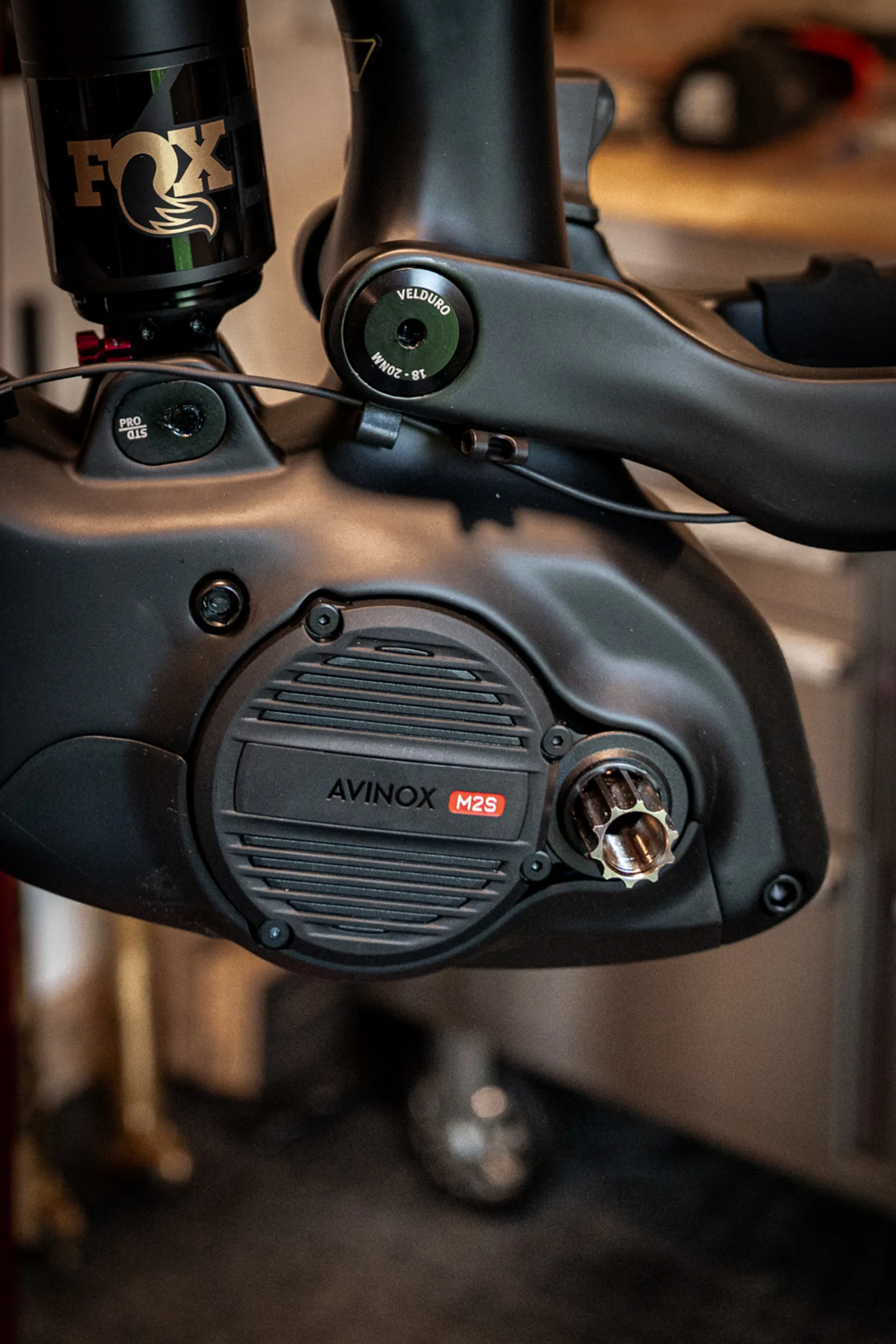

Dji avinox M2s motor 250W 120Nm
Dji avinox chainwheel spider with lock
Dji avinox isis crank 155mm
Dji avinox battery 36V
Dji DP100 2inch smart screen
Dji BC100 bluetooth remoter X2
Dji speed sensor
Dji 4A 168Wh charger
Dji power cables
Velduro steel chainwheel, 104BCD, 34T

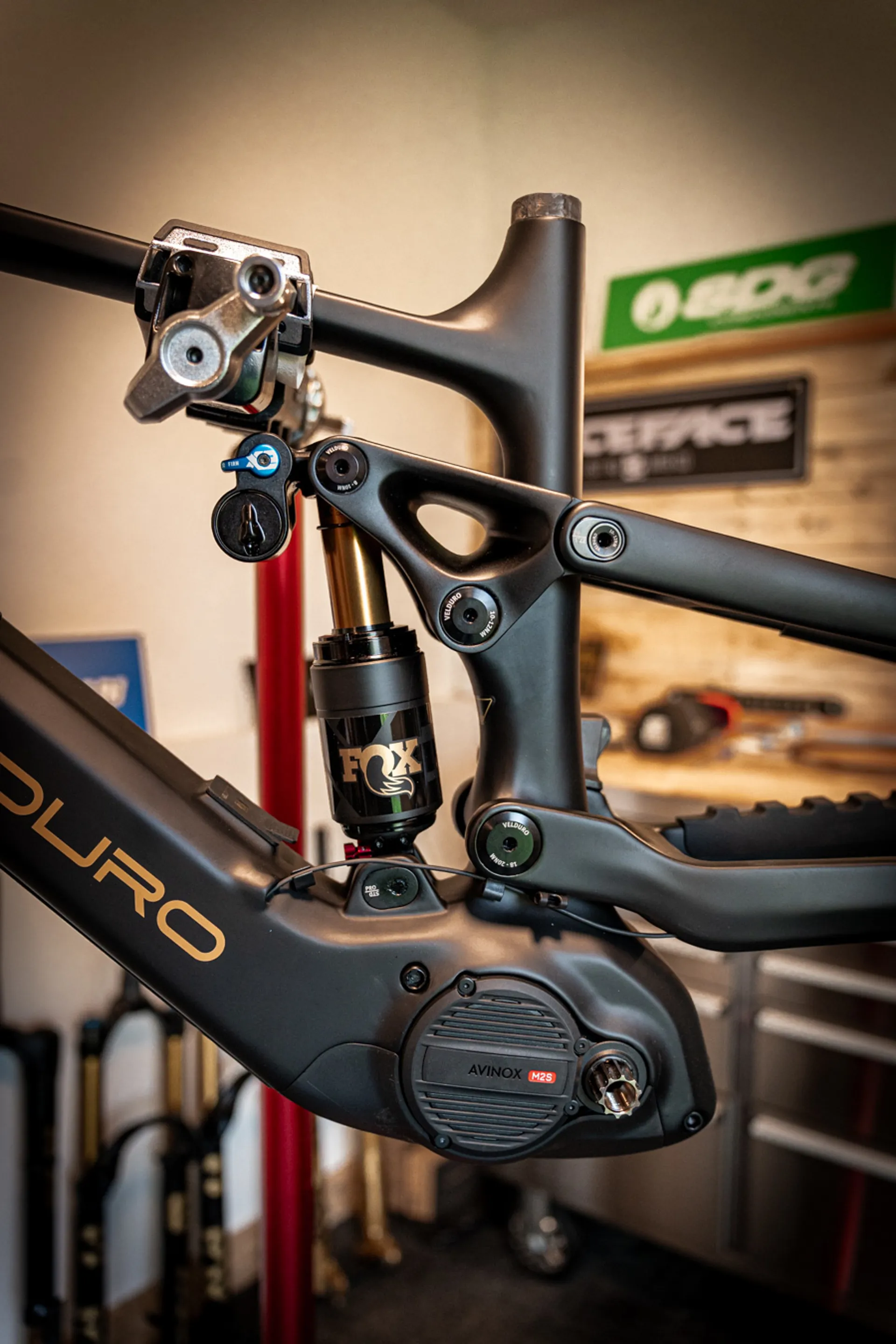

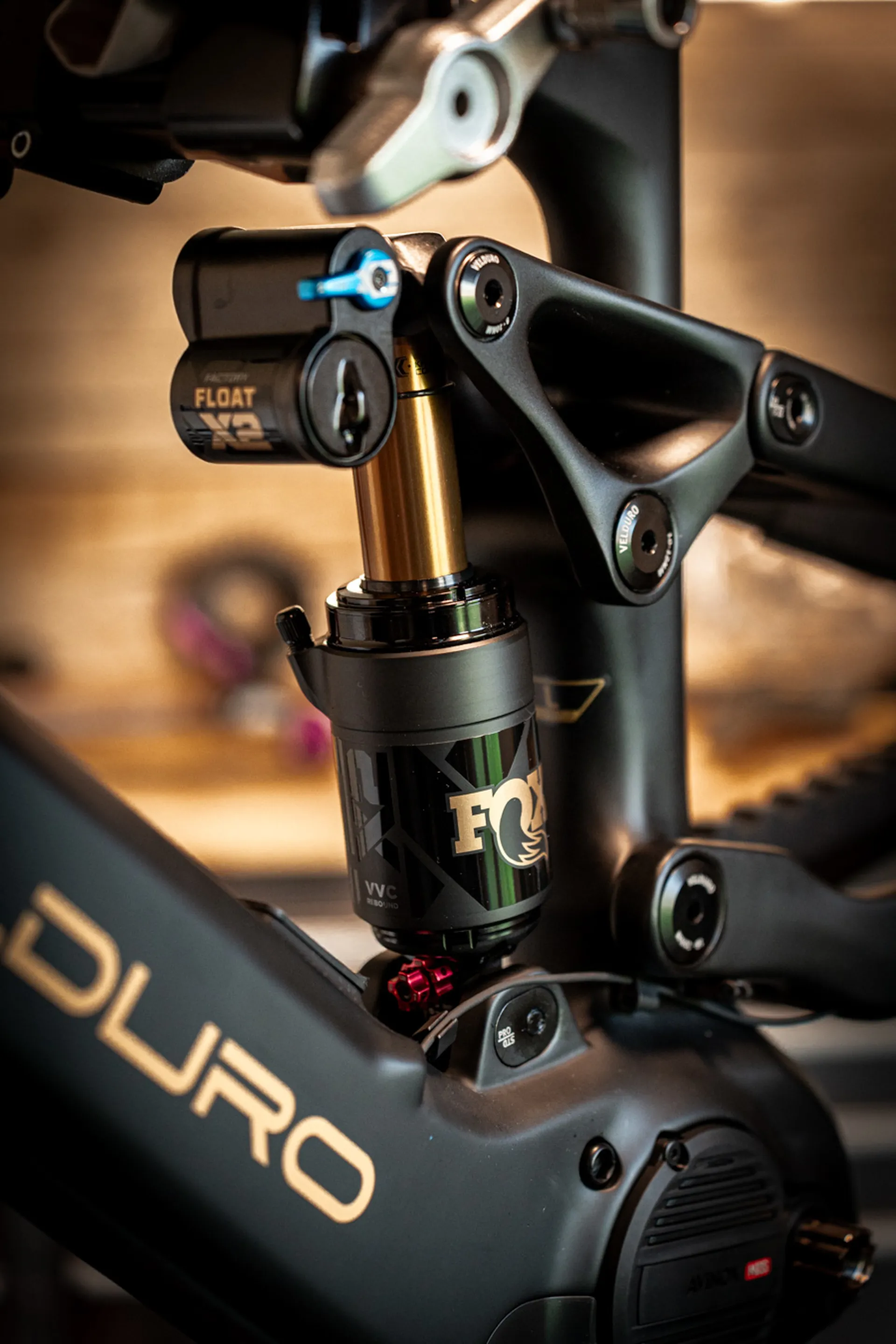

Fox float X2 F-S 2026, 205X65mm TR
Fox factory customized tunned

Technical Information
SPEC SUITABLE LIST

Handle System
External wiring headset, ZS, dia top 44mm/
bottom 56mm
Saddle System
Dia 31.6mm, Seatpost insert length:
S:262mm, M:282mm, L: 302mm, XL:325mm
Dropper cable length: 1200mm
Dropper travel suggest as below
S:180mm, M&L:210mm , XL:240mm

Brake System
Frame rear brake post mount 200mm directly
Front brake cable 850mm
Rear brake cable 1700mm

Drive System
Chainwheel: 104BCD, up to 34T
Crank: up to 165mm length, Min offset:25mm
UDH deralleur suitable
1x shifting only
Shimano and SRAM shift both fit
e-shift and manual shift both fit
Manual shift cable length 2000mm

Wheel System
Front hub: depends on the fork, normally 15X110mm
Rear hub: 12X148 boost, 6-Bolts
Front rim: 29’(700C) rim
Rear rim: 29’(700C) or 27.5(650B) rim
Front tire: depends on your fork
Rear tire: max to 29’X2.4 or 27.5’X2.4

Suspension System
1.5T, 160-180mm travel fork suitable, 170mm
travel as suggest, CTA:584mm
Shock 205mmX65mm(TR)*, bushing as M8*30mm
65mm travel shock max to 172mm rear travel
62.5mm travel shock as 160mm rear travel
